Offers ultra-high efficiency, significantly lowering power consumption compared to traditional induction motors.
Automatically adjusts motor speed to match air demand, eliminating energy waste from unloading cycles.
Optimized screw rotor design and soundproof enclosure ensure quiet operation (as low as 65 dB).
Fully integrated unit with built-in cooling system, reducing installation footprint.

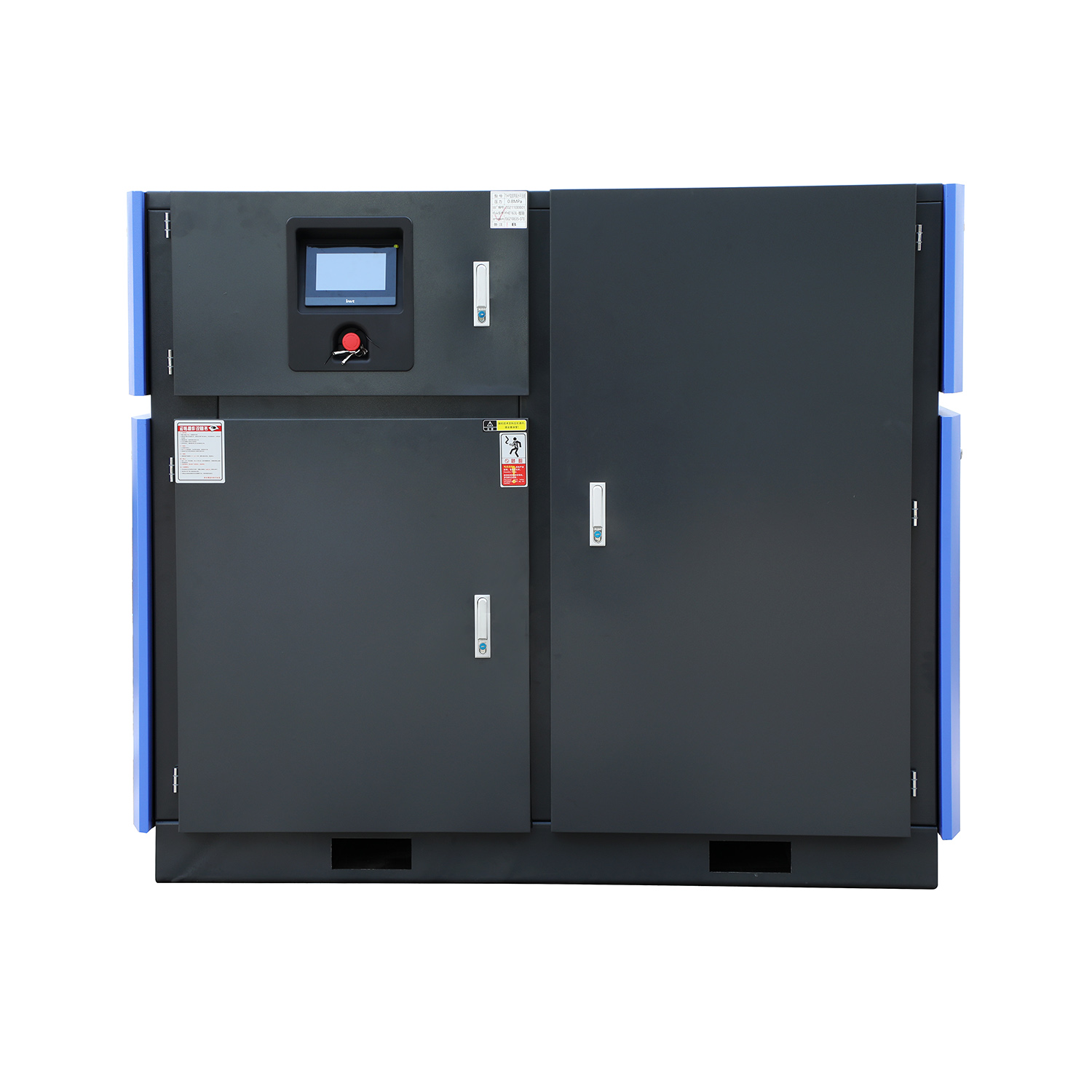

User-friendly LCD touchscreen with real-time monitoring, fault alerts, and remote control capability.
Premium bearings, corrosion-resistant rotors, and efficient filtration ensure long service life and minimal downtime.
Ideal for manufacturing, automotive, textiles, food & beverage, pharmaceuticals, and electronics industries, where stable air supply and energy efficiency are critical.
| Model | ETSVII-22A | ETSVII-37A | ETSVII-45A | ETSVII-55A | ETSVII-75A | ETSVII-90A | ETSVII-110A | ETSVII-132A | |
|---|---|---|---|---|---|---|---|---|---|
| Air Flow / Pressure (m³/min / MPa) |
0.7 MPa | 4.1 | 6.9 | 8.9 | 11.2 | 15.1 | 20.0 | 22.0 | 26.0 |
| 0.8 MPa | 4.0 | 6.8 | 8.8 | 11.0 | 15.0 | 19.8 | 21.2 | 25.8 | |
| 1.0 MPa | 3.4 | 6.2 | 7.8 | 9.7 | 12.4 | 17.9 | 19.8 | 23.5 | |
| Air Supply Temperature | ≤ ambient temperature + 8~15°C | ||||||||
| Motor details | |||||||||
| Motor | Power (kW/HP) | 22/30 | 37/50 | 45/60 | 55/75 | 75/100 | 90/120 | 110/150 | 132/175 |
| Start Method | VSD start | ||||||||
| Voltage (V/Hz) | 380V 3PH 50HZ (other voltages can be customized) | ||||||||
| Performance & Connections | |||||||||

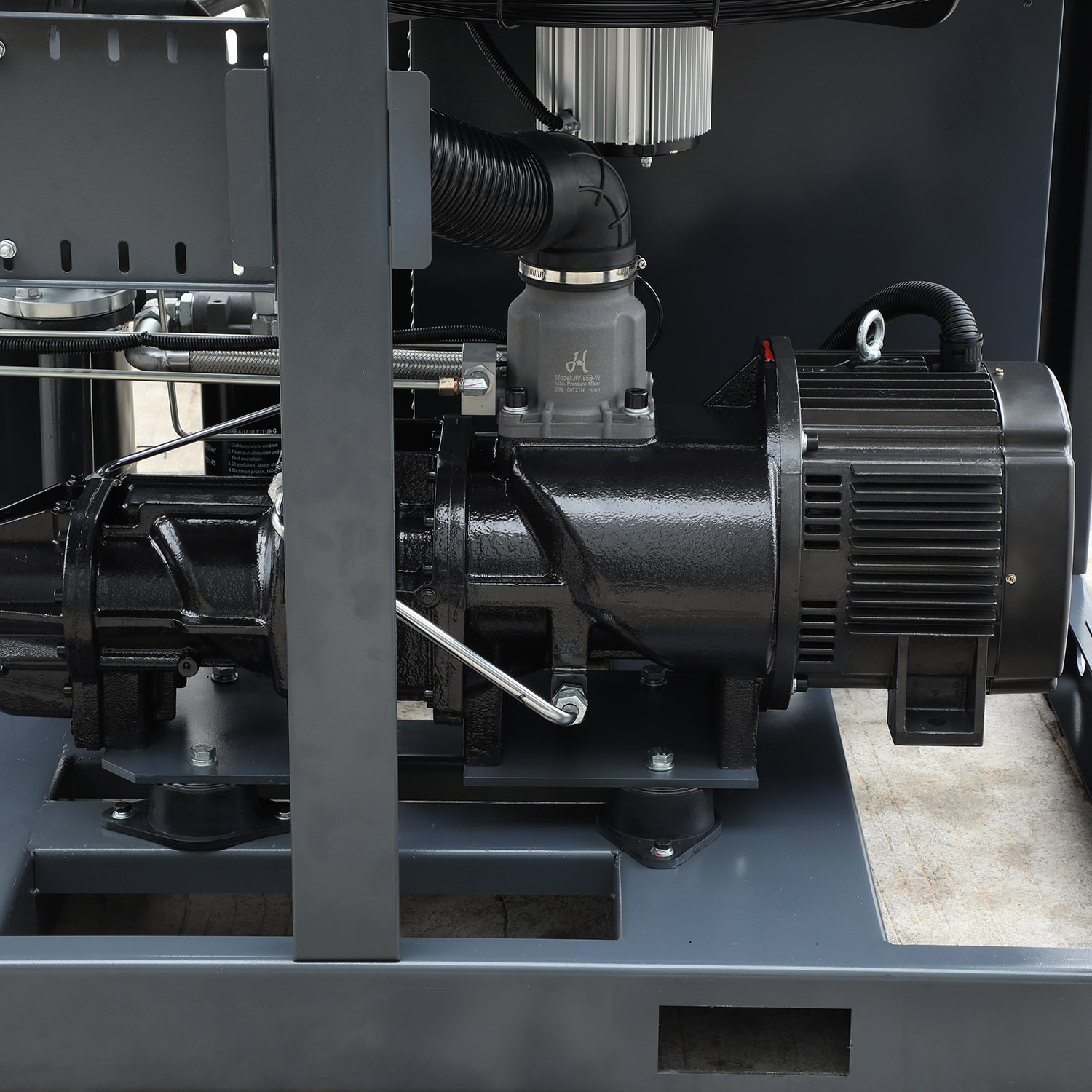

| Drive Method | Integrated air end and motor | ||||||||
| Oil Content (PPM) | ≤ 3 | ||||||||
| Connector Inch | 1" | 1 1/2" | 2" | 2" | 2" | 2 1/2" | 2 1/2" | 2 1/2" | |
| Physical Properties | |||||||||
| Dimension | Length (mm) | 1254 | 1455 | 1754 | 7854 | 1914 | 2454 | 2454 | 2454 |
| Width (mm) | 900 | 1100 | 1200 | 1300 | 1300 | 1500 | 1500 | 1500 | |
| Height (mm) | 1190 | 1300 | 1550 | 1550 | 1600 | 1840 | 1840 | 1840 | |
| Weight (kg) | 450 | 580 | 925 | 970 | 1170 | 1746 | 1750 | 1790 | |

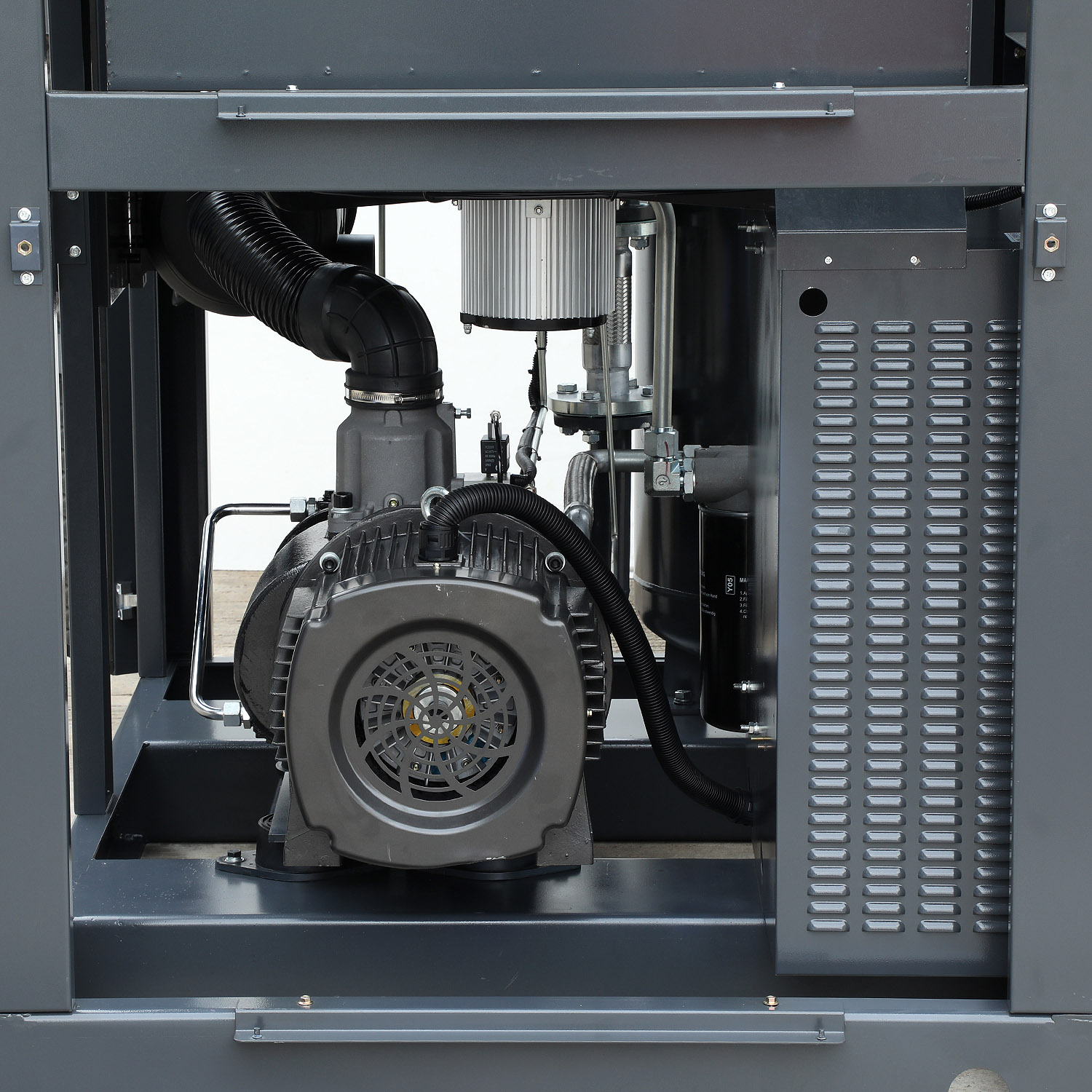

The Permanent Magnet Motor (PM Motor) features ultra-high operational efficiency. When paired with the Integrated Variable Frequency Drive (VFD), it automatically adjusts motor speed to match real-time air demand, which cuts out wasted energy during unloading cycles and delivers 30-40% overall energy savings.
Due to the precision-engineered screw rotor design and high-quality soundproofing enclosure, our compressors operate quietly with noise levels reaching as low as 65 dB, making them ideal for noise-sensitive industrial environments.

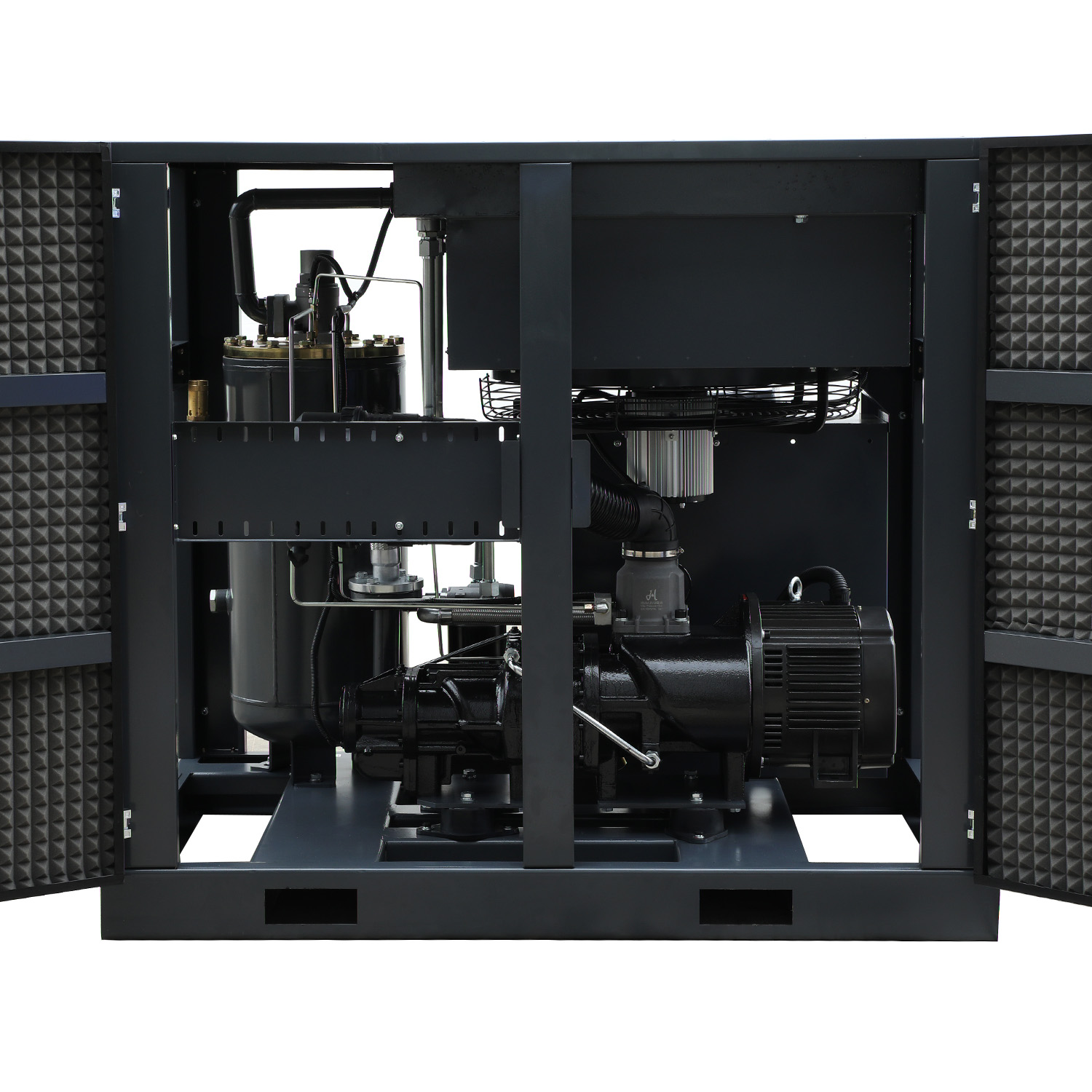

Yes, the unit features a compact, space-saving design with a fully integrated cooling system. It is pre-assembled for plug-and-play installation, significantly reducing the layout footprint and installation complexity.
While the standard operational voltage configuration is 380V, 3-Phase, 50Hz, alternative voltage specifications can be fully customized to match the electrical requirements of your facility.
To assure you of our build quality and product durability, we provide a comprehensive 1-Year Warranty specifically covering the Permanent Magnet Motor.
