Frequently Asked Questions (FAQ)
Q

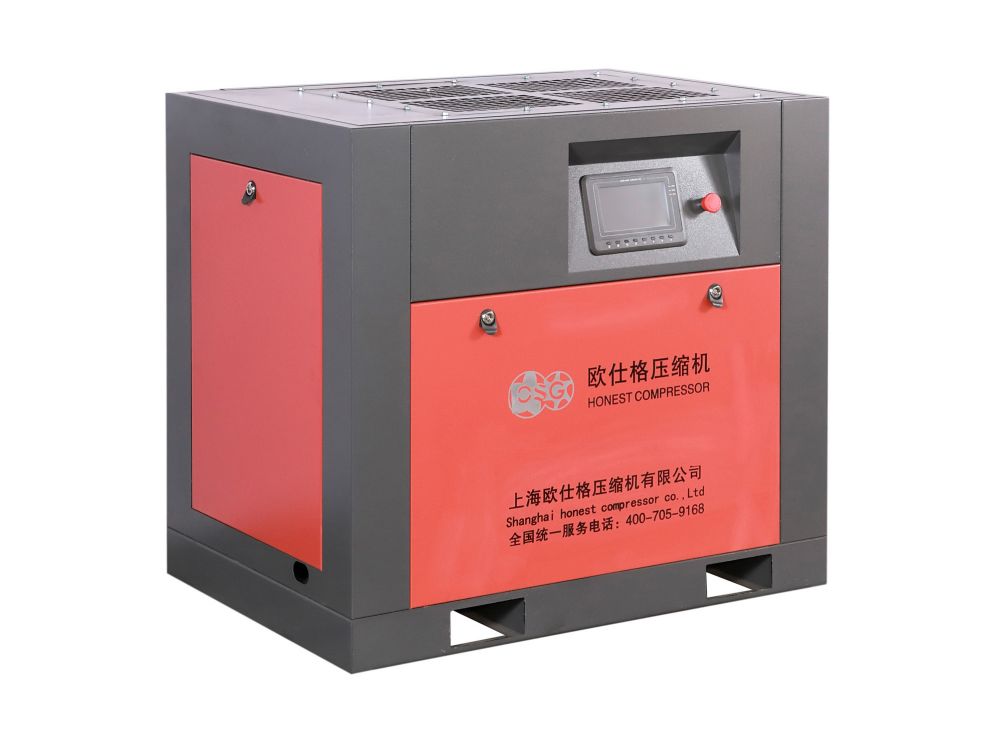

What are the key technical specifications of the XD-11A model?
The XD-11A features a free air delivery rate of 1.1-1.65m³/min, a working pressure range of 7 to 13 bar, and operates with an automatic PLC controller. It is powered by a 380v/50hz/3ph motor with IP55 protection.
Q
How does the control system ensure stable operation?
The unit is integrated with an intelligent PLC controller that offers an easy-to-use menu, providing precise operational management to maintain a stable output while optimizing energy consumption.
Q
What type of drive and cooling system does this compressor use?
The compressor utilizes a direct-driven mechanism with elastic coupling for maximum efficiency and a maintenance-free drive lifespan. The system is cooled by air, designed to maintain exceptionally low temperatures for the air flow and internal components.
Q
What is the noise level of the XD-11A air compressor?
The noise level is engineered to be less than 63dB(A), ensuring a quieter and more comfortable working environment near the installation area.
Q
How is the maintenance cost minimized on this compressor?
It uses high-durability components such as a large inlet filter, oil filter, and a fine separator. Furthermore, the "speed up maintenance point" design permits rapid servicing within minutes, minimizing overall downtime and labor costs.
Q
What is the insulation rating of the motor?
The electric motor is configured with IP 55/54 class F insulation, ensuring robust thermal resistance and protection against dust and water ingress.
