1 / 4

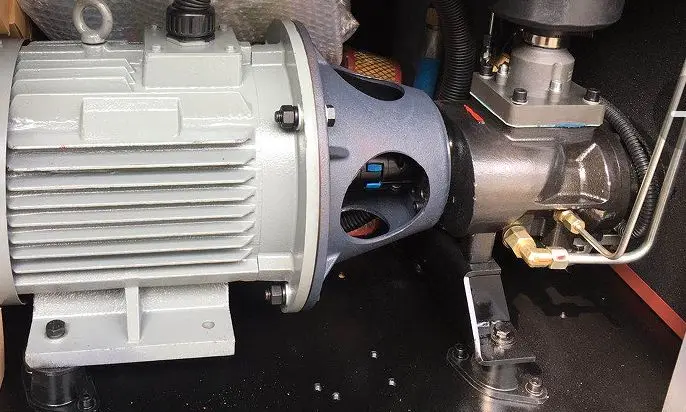

High efficiency air end with UK technology used for our screw air compressor. Double screw ensure the compressor run with lower noise and longer life time.
Withstand high temperatures and humid working environments. Noise reduction technology so that no need for special installation base. Small area is sufficient for proper air circulation and machine maintenance.
Controlled by advanced PLC which has protection functions and powerful fault diagnosis. Actionable steps are taken immediately when it detects a fault.
Run most efficiently to ensure keeping costs lower. It will shut off to save energy and reduce operating costs when compressor is not consuming air. When the air consumption increases, the compressor will start automatically.
Highly steady and easily adjustable to make your productions systems as smooth as possible.
| XD- series technical parameters: | ||||||||||||||
| Model | XD-8A | XD-11A | XD-15A | XD-18A | XD-22A | XD-30A | XD-37A | XD-45A/ | XD-55A | XD-75A | XD-90A | XD-110A | XD-132A | |
| Free air delivery/Discharge air pressure (M3/min/ Mpa) | 1.1/0.7 | 1.8/0.7 | 2.5/0.7 | 3.0/0.7 | 3.7/0.7 | 5.0/0.7 | 6.5/0.7 | 8.0/0.7 | 10.8/0.7 | 14.0/0.7 | 16.8/0.7 | 21.6/0.7 | 24.5/0.7 | |
| 1.0/0.8 | 1.7/0.8 | 2.3/0.8 | 2.9/0.8 | 3.5/0.8 | 4.8/0.8 | 6.2/0.8 | 7.5/0.8 | 10.2/0.8 | 13.2/0.8 | 15.8/0.8 | 20.0/0.8 | 24.0/0.8 | ||
| 0.9/1.0 | 1.5/1.0 | 2.0/1.0 | 2.7/1.0 | 3.1/1.0 | 4.3/1.0 | 5.6/1.0 | 6.8/1.0 | 9.0/1.0 | 11.6/1.0 | 14.2/1.0 | 17.5/1.0 | 22.0/1.0 | ||
| 0.7/1.3 | 1.2/1.3 | 1.7/1.3 | 2.2/1.3 | 2.6/1.3 | 3.6/1.3 | 4.5/1.3 | 5.5/1.3 | 7.2/1.3 | 9.8/1.3 | 11.6/1.3 | 14.3/1.3 | 17.8/1.3 | ||
| Air supply temperature | ≤ ambient temperature +8~15°C | |||||||||||||
| Motor | Power (kw/hp) | 7.5/10 | 11/15 | 15/20 | 18.5/25 | 22/30 | 30/40 | 37/50 | 45/60 | 55/75 | 75/100 | 90/120 | 110/150 | 132/175 |
| Start method | Y-Δ Starter | |||||||||||||
| Voltage (v/hz) | 380V 3PH 50HZ (380V-3PH-60HZ/ 460V-3PH-60HZ/ 220V-3PH-60HZ/ 400V-3PH-50HZ/6000V-3PH-50HZ/other voltages customized) | |||||||||||||
| Drive method | V-belt transmission / Coupling transmission | |||||||||||||
| Oil content (PPM) | ≤ 3 | |||||||||||||
| Connector inch | 3/4" | 3/4" | 1" | 1" | 1" | 1 1/4" | 1 1/4" | 1 1/2" | 1 1/2" | 2" | 2" | 2 1/4" | 2 1/2" | |
| Noise(Db)±2 | 66 | 68 | 68 | 68 | 68 | 68 | 72 | 72 | 75 | 78 | 85 | 85 | 85 | |
| Dimension | length mm | 850 | 1100 | 1100 | 1250 | 1250 | 1250 | 1350 | 1350 | 1800 | 1900 | 1900 | 2300 | 2300 |
| width mm | 670 | 750 | 750 | 850 | 850 | 850 | 1000 | 1000 | 1230 | 1230 | 1230 | 1470 | 1470 | |
| height mm | 870 | 920 | 920 | 1160 | 1160 | 1160 | 1190 | 1190 | 1570 | 1570 | 1570 | 1840 | 1840 | |
| Weight (kg) | 178 | 260 | 267 | 310 | 396 | 450 | 586 | 593 | 1073 | 1171 | 1327 | 1801 | 1848 | |
Our screw air compressor utilizes a high efficiency air end with UK technology. The double screw design ensures the compressor operates with lower noise and a longer life span.
Yes, the system is designed with strong environmental adaptability, allowing it to withstand high temperatures and humid working environments without performance drops.
No, thanks to our advanced noise reduction technology, there is no need for a special installation base. A small area is sufficient for proper air circulation and routine machine maintenance.

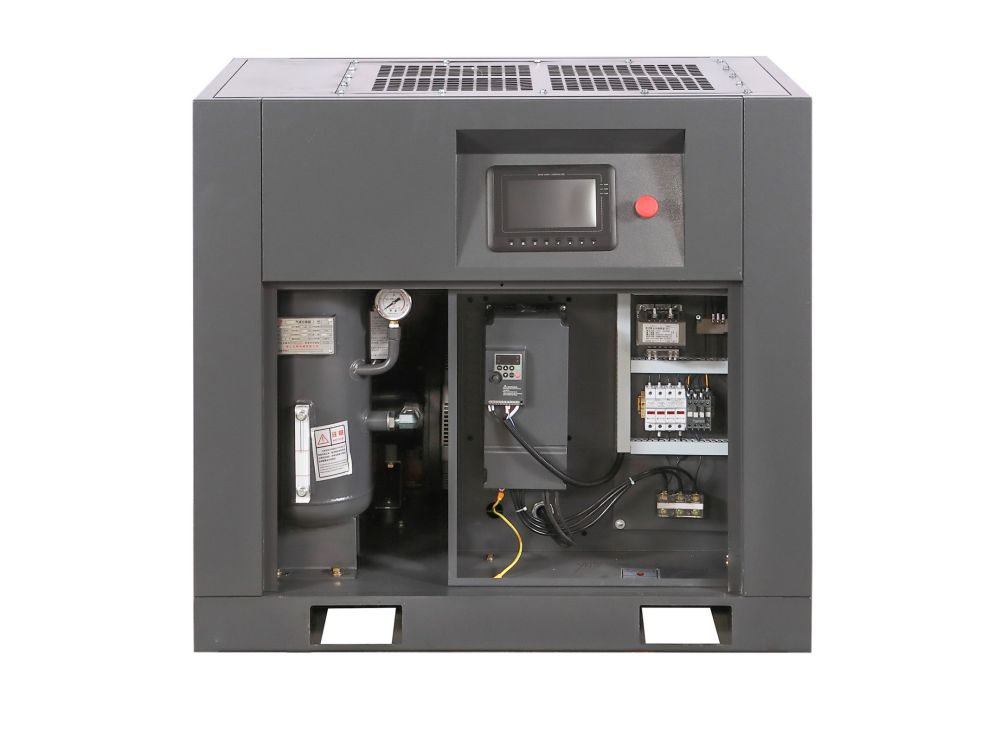

The unit is controlled by an advanced PLC system featuring multiple protection functions and powerful fault diagnosis. If a fault is detected, the system provides immediate actionable steps to ensure quick maintenance.
The compressor runs most efficiently to minimize operating expenses. It automatically shuts off to save energy when no air is being consumed and restarts automatically as air demand increases.
The high-quality motor is constructed with an IP 55/54 protection class rating and Class F insulation to ensure reliable, high-efficiency operations.
