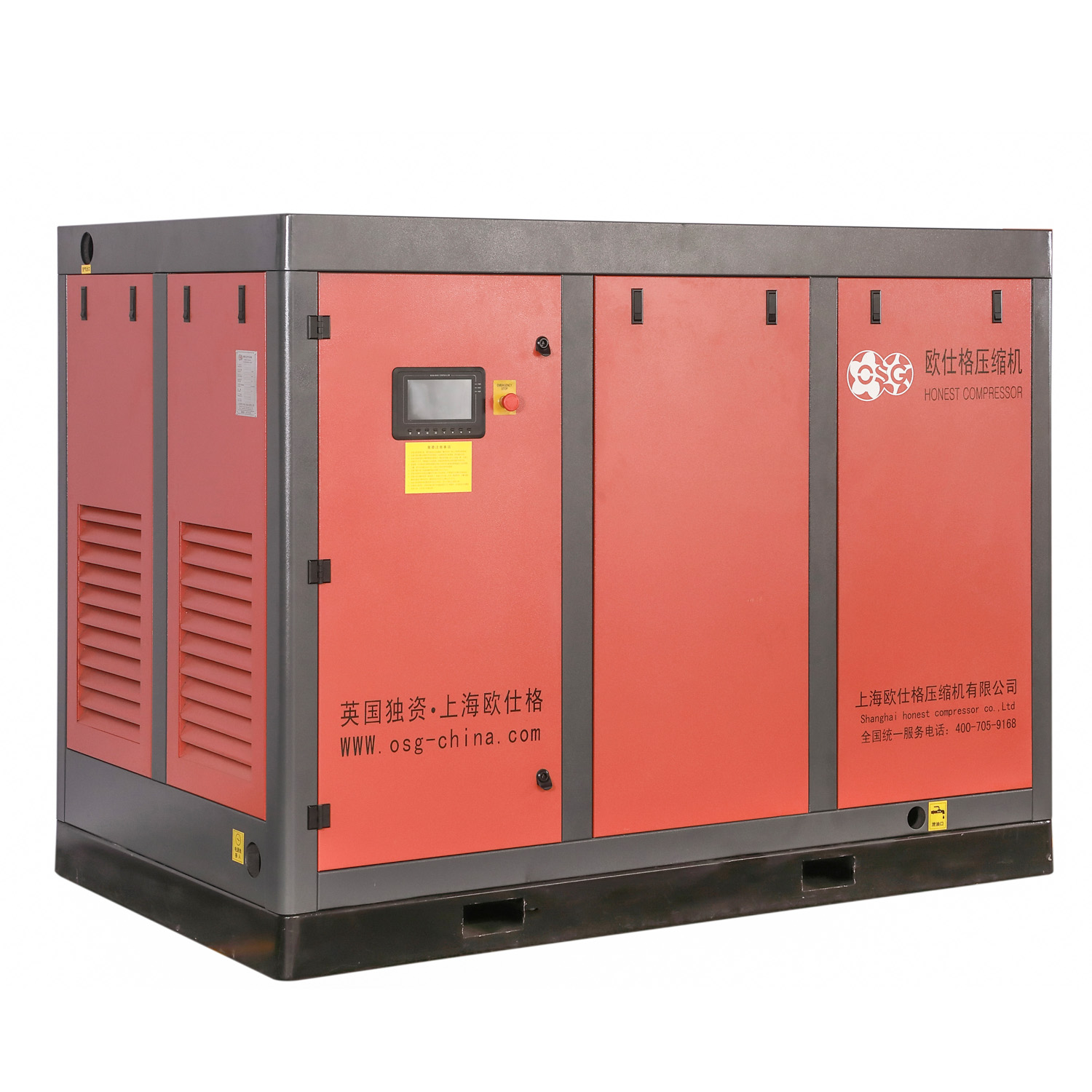

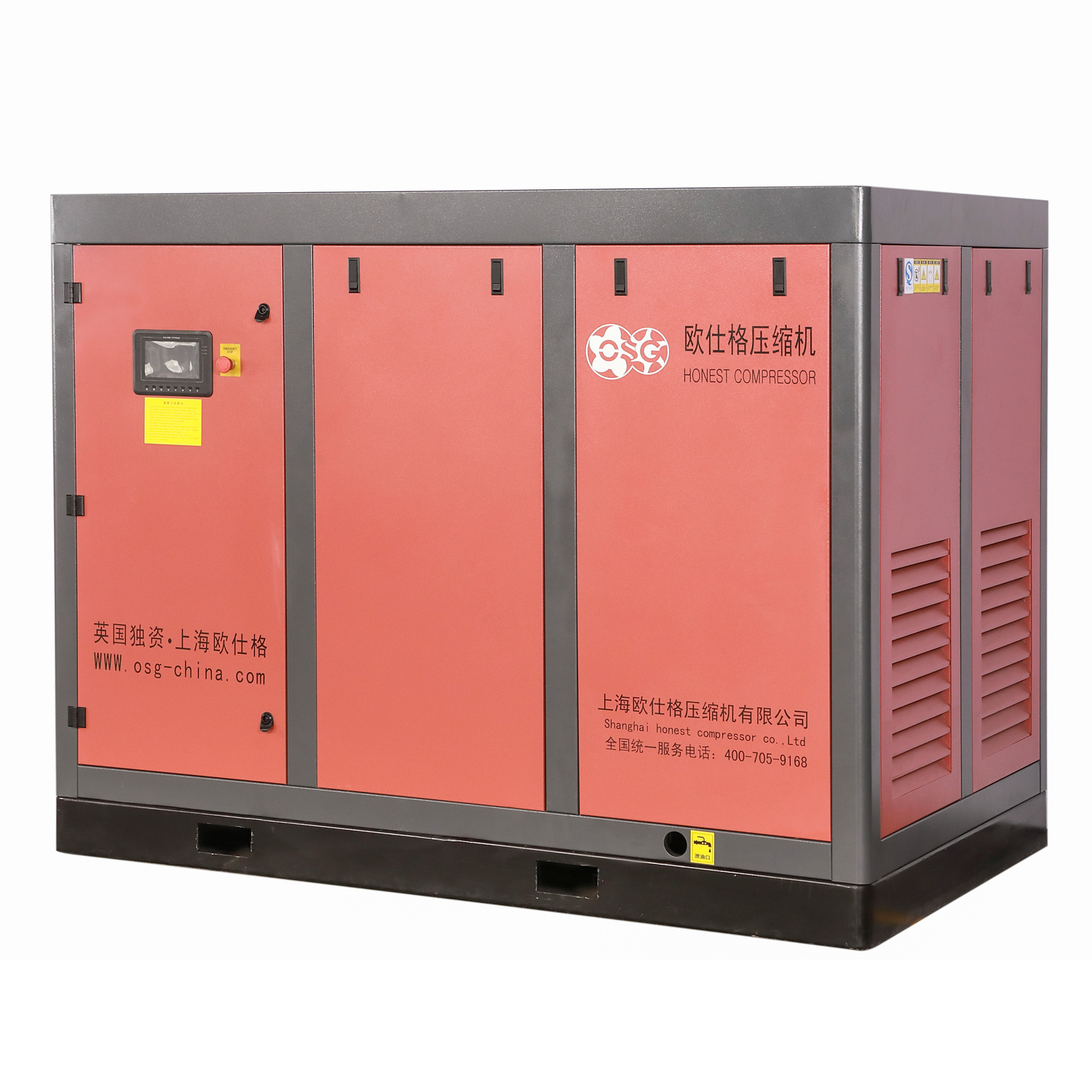

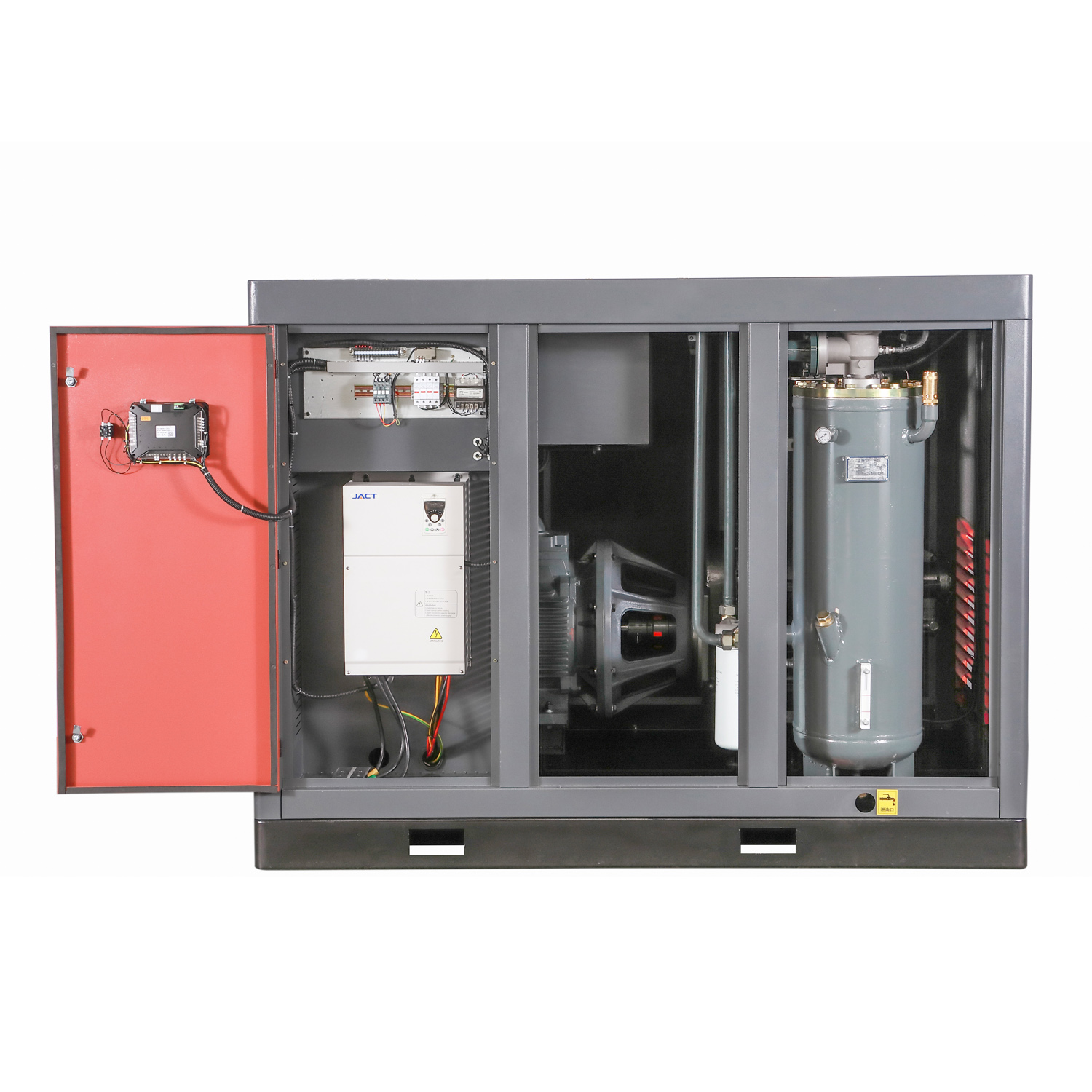

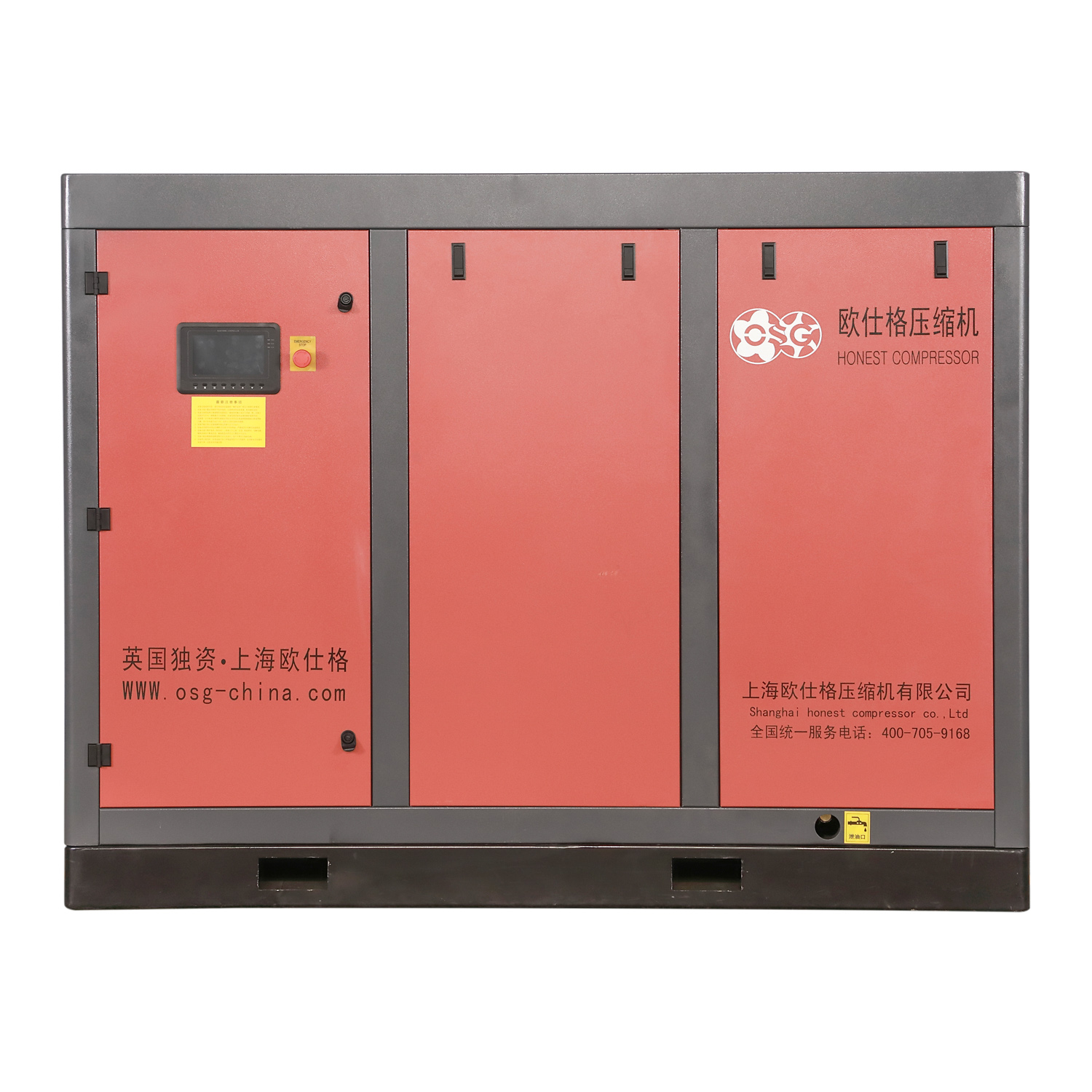

China IP55/54 55KW 75HP Factory Price Two Stage Industrial Screw Type Air Compressor Machine Manufacturers, Exporter

IP55/54  55KW 75HP Factory Price Two Stage Industrial Screw Type Air Compressor Machine

SHORT DESCRIPTION:

1. No gears, no traditional faults such as couplings, no bearings for the motor, more stable operation and less noise; 2. Unique design, dual hosts, dual motors, horizontal placement, less vibration, more stable and comfortable operation; 3. Dual air ends, double frequency conversion, stepless speed change, so that the host is always running at an energy-saving speed, more energy-saving; Oil-cooled IP55 fully enclosed motor, the motor is controlled in a good state, with higher efficiency and safety.

Product Description

Model Name
ETSV-55A
⚙️
Motor Power
55 KW / 75 HP
💨
Working Pressure
7 - 13 Bar
Technical Specifications
Parameter Specification Detail
Model ETSV-55A
Power (KW) 55 KW
Horsepower (HP) 75 HP
Pressure (Bar) & Flow Rate (m³/min) 7 Bar: 12.8 m³/min
8 Bar: 12.4 m³/min
10 Bar: 9.7 m³/min
13 Bar: 8.76 m³/min
Exhaust Temperature ≤ Ambient +8°C
Intake Air Temperature No more than 45°C
Noise Level dB(A) 68 ± 2
Oil Content (ppm) ≤ 3
Standard Voltage 380V / 3 Phase / 50Hz (or customized request)
Dimensions (L × W × H) mm 2100 * 1260 * 1600 mm
Weight (kg) 1700 KGS
Diameter of Outlet 2″
Applicable Industries General Industry
Warranty 13 months from the delivery date
Working Pressure Ranges 7 bar, 8 bar, 10 bar, 13 bar
Machinery Test Report Video outgoing-inspection
Gas Type Air
Condition New
Type Screw
Power Source AC Power
Lubrication Style Lubricated
Supported Voltage Configurations 220V / 230V / 380V / 400V / 440V / 460V / 600V (or others custom built)
After-Sales Support Engineers available to service machinery overseas
Cooling Method Air Cooling / Water Cooling
Drive Method Direct Driven / Coupling
Color Options Red and Grey / Customizable
OEM / ODM Services Offered / Supplied
Insulation Grade F
Protection Grade IP54 / IP55
Exhaust Oil Content < 3ppm
Frequently Asked Questions
What are the motor power and horsepower ratings of the ETSV-55A?
The ETSV-55A is equipped with a high-performance 55 KW motor, which delivers approximately 75 HP (Horsepower), making it suitable for continuous heavy-duty industrial applications.
What is the relationship between pressure levels and air flow rate for this model?
The flow rate varies according to your selected pressure setting: 7 bar delivers 12.8 m³/min, 8 bar delivers 12.4 m³/min, 10 bar delivers 9.7 m³/min, and 13 bar offers 8.76 m³/min.
Can the operating voltage be customized for international power grids?
Yes. While the standard configuration runs on a 380V/3ph/50Hz system, we offer highly customizable configurations including 220V, 230V, 400V, 440V, 460V, and 600V power systems to match your local grid requirements.
How is the output compressed air quality optimized?
The compressor keeps the exhaust oil content clean at under 3 ppm (parts per million). The exhaust temperature is also strictly managed to remain at or below ambient temperature plus 8°C.
What type of cooling and drive systems does the ETSV-55A use?
It offers options for both Air Cooling and Water Cooling depending on your work environment. The system employs direct driven/coupling drive methods to maximize energy transfer efficiency and minimize maintenance needs.
What protection features does the unit offer?
The machine features Class F motor insulation and carries IP54 or IP55 protection ratings, ensuring reliable shielding against dust and water ingress in harsh industrial environments.
