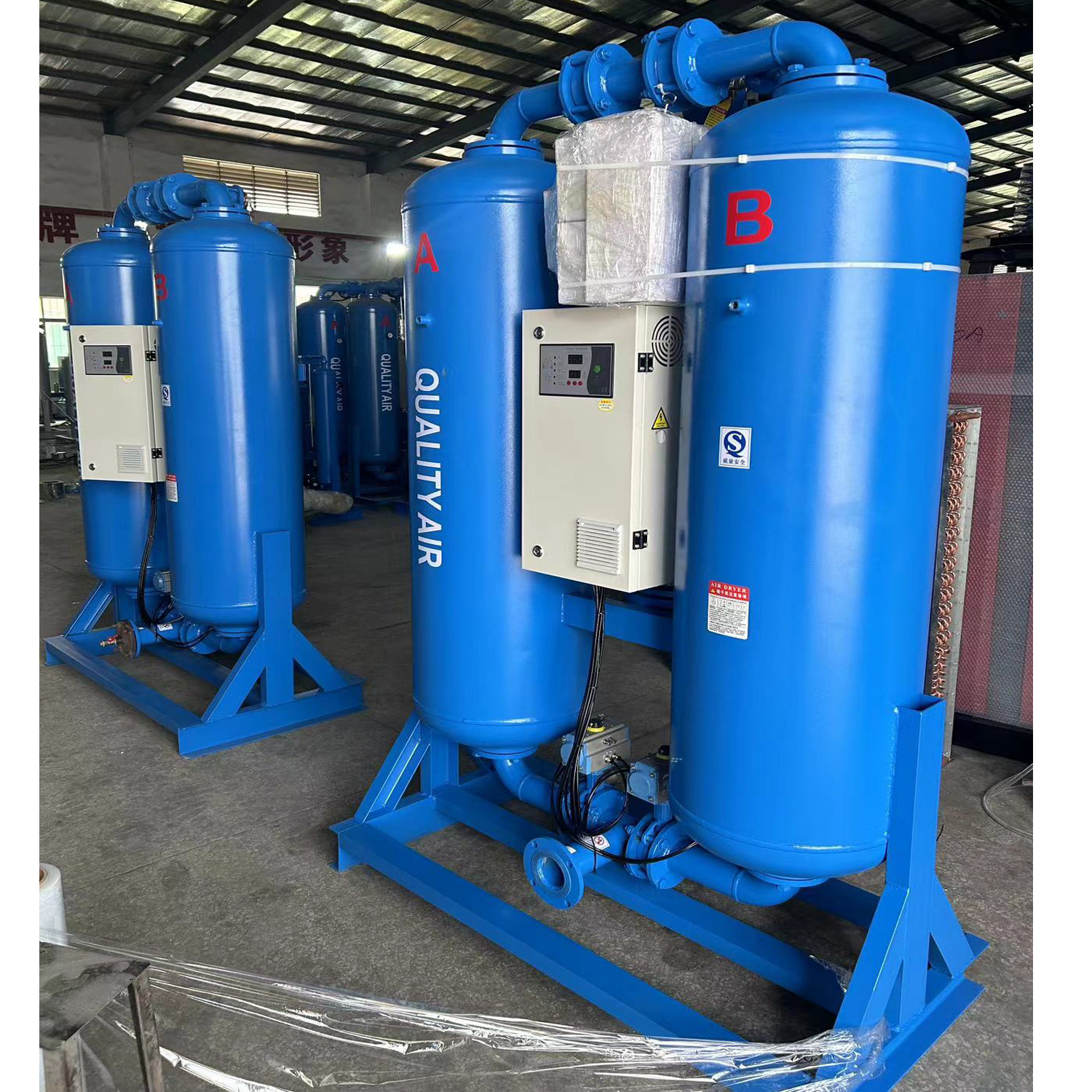

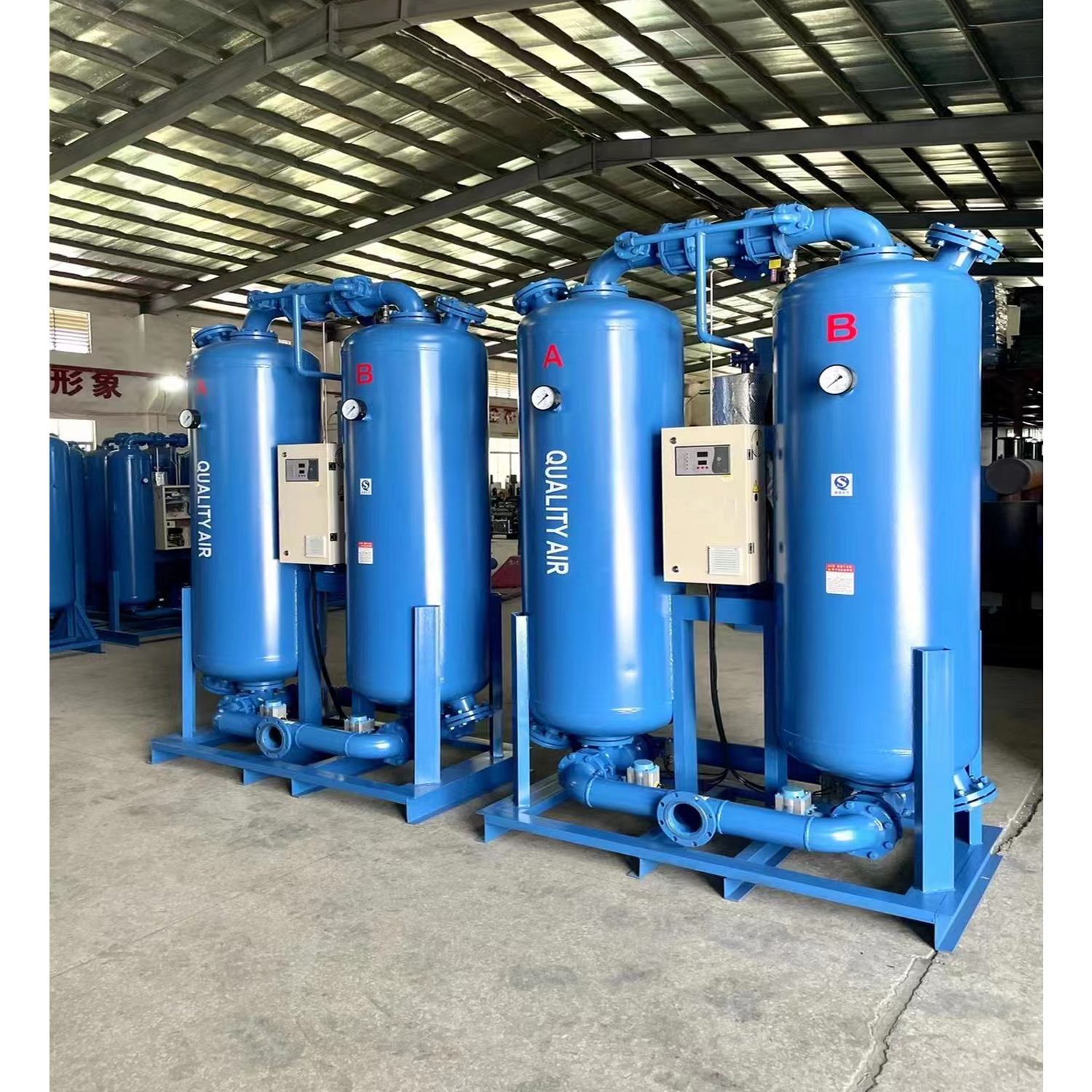

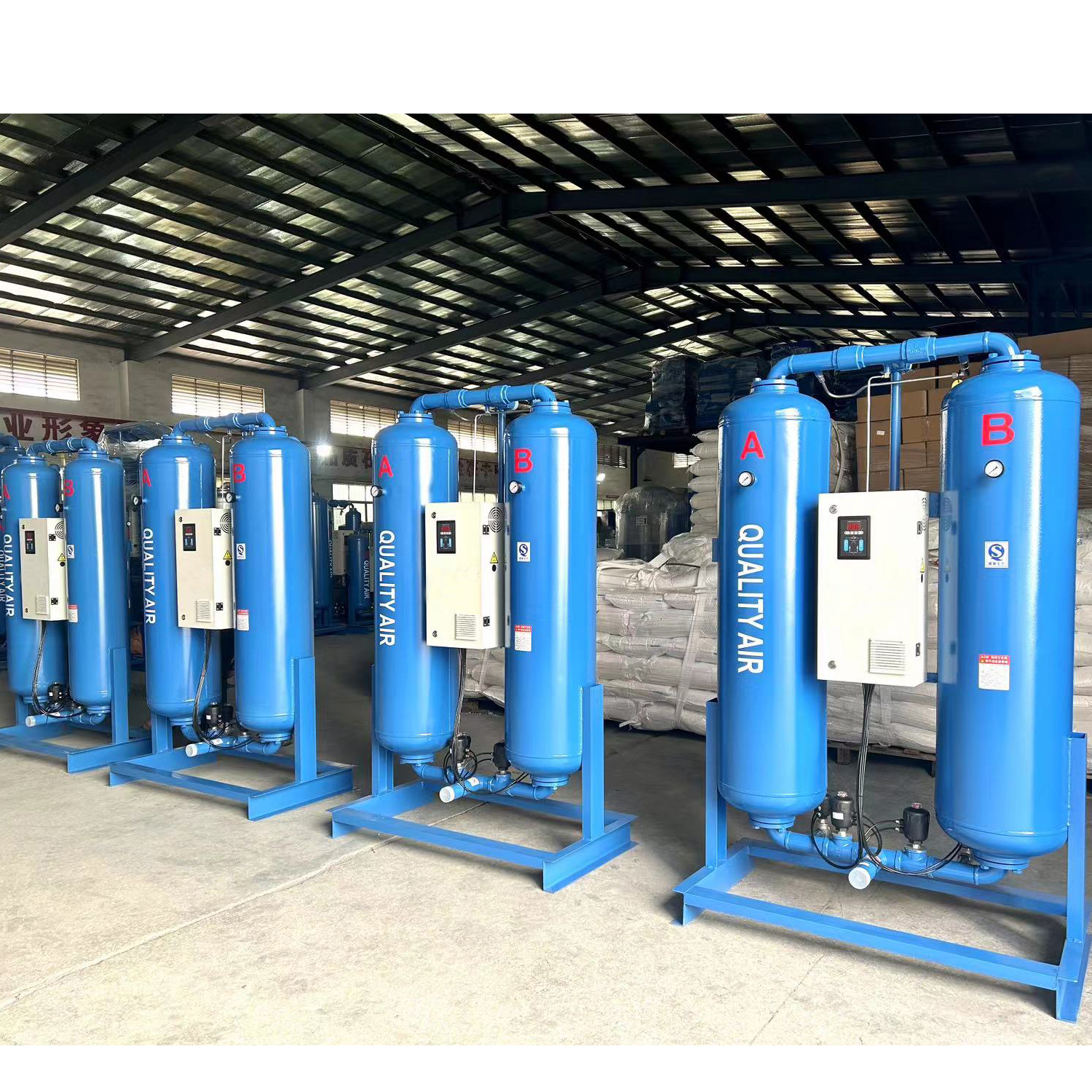

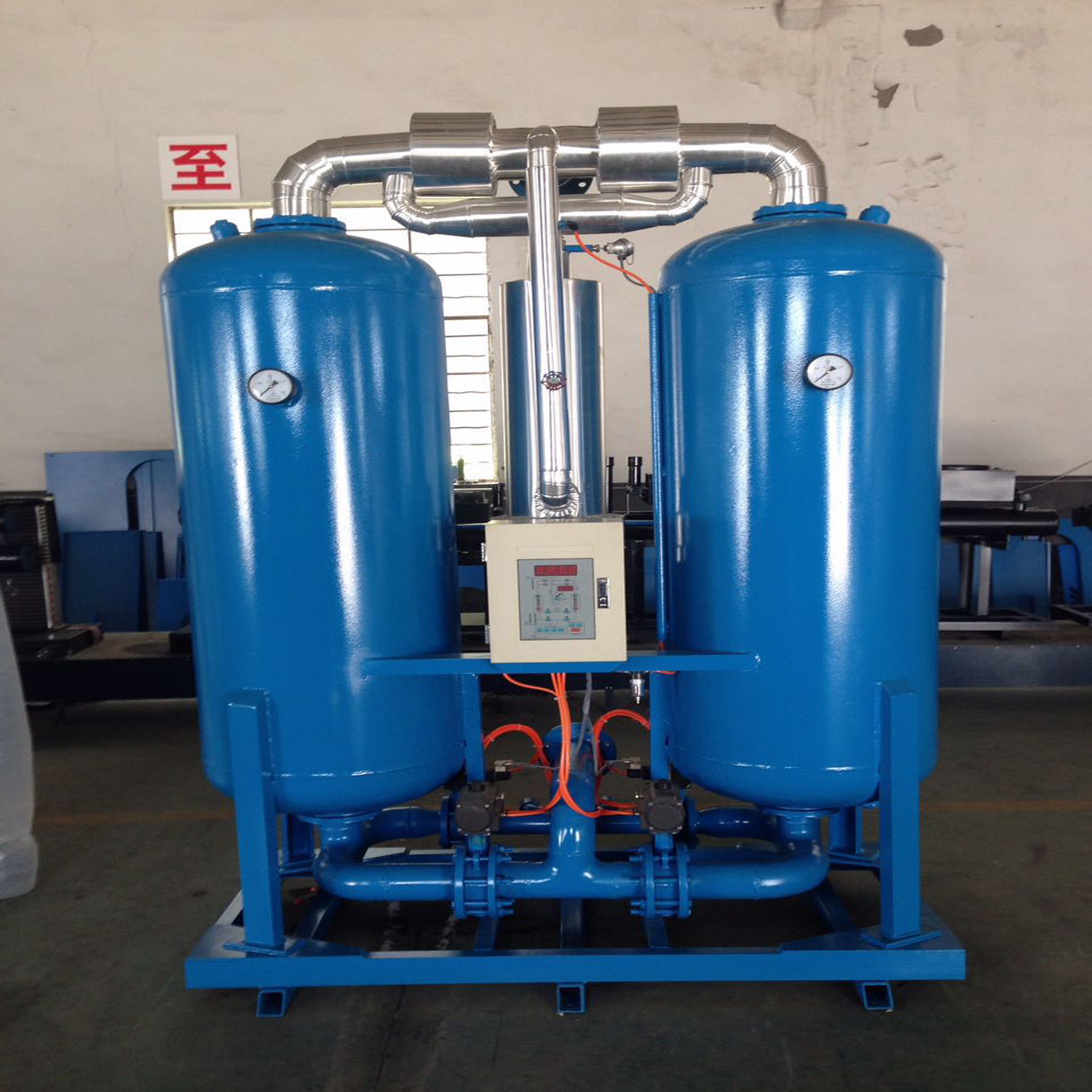

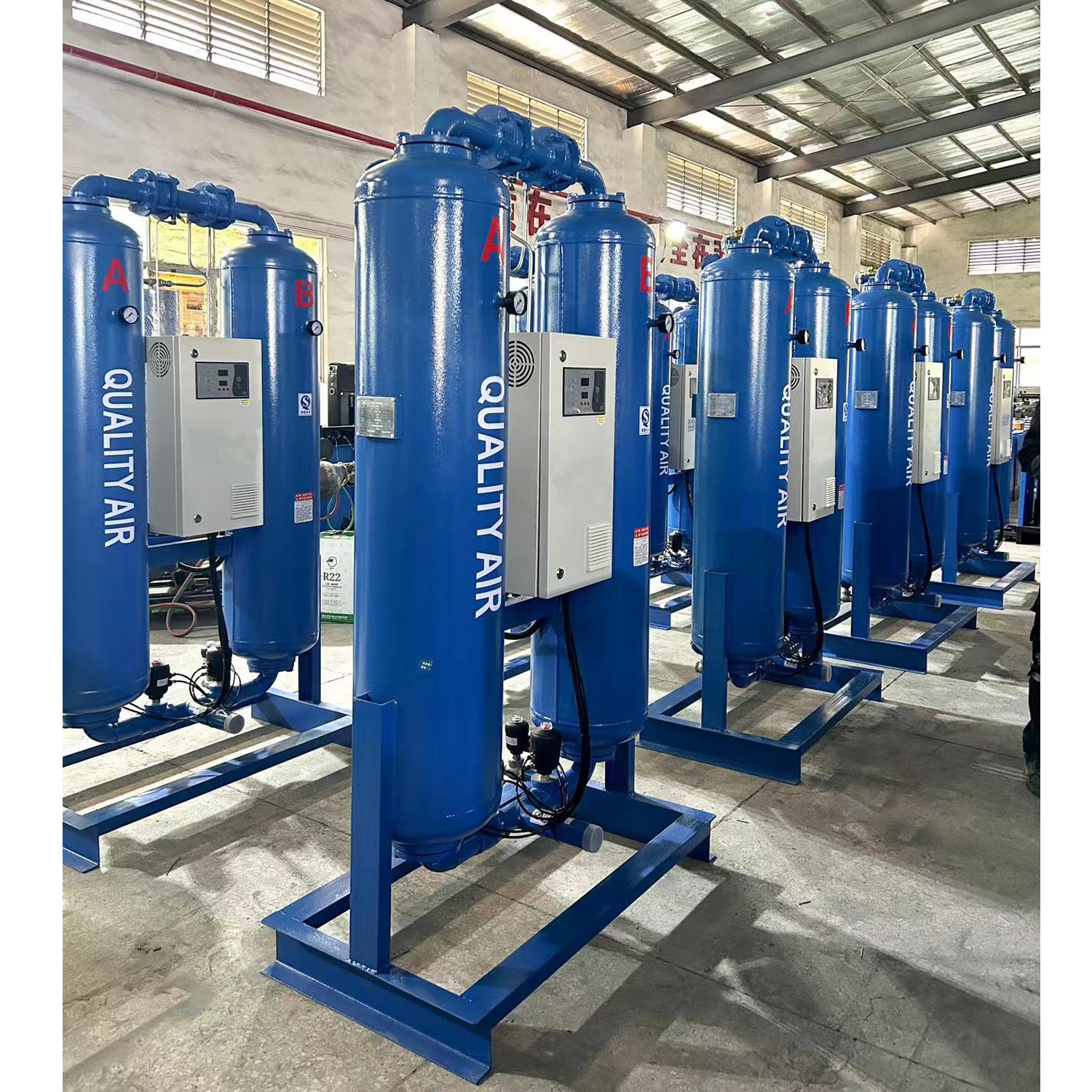

China Micro Heat Regeneration Desiccant Compressed Air Dryer For Compressed Air Manufacturer, Factory

Flowing range: 1.5-500 m3/min Pressure range: 0.6-1.0 MPa Intake temp:45it Regeneration gas volume:6% Working cycle: 90-480 minutes Pressure dew point: -20 IT, -40 VII, -70 IT Intake oil content::;;;0.1 PPM Adsorbent: alumina + molecular sieve Power supply: 380V /3Ph/50HZ ＊High pressure and stainless steel can be customized. *Customization is welcome for above 1.0MPa.

Send Inquiry

Product Description

Model	Flow	Power	Voltage	Connection size	Length mm	Width mm	Height mm
OSGHM-3NF	3.8	3	380V/50-60HZ	1"	860	500	1750
OSGHM-6NF	6.8	3	380V/50-60HZ	2"	990	550	1830
OSGHM-8NF	8.5	3	380V/50-60HZ	2"	1080	600	1600
OSGHM-12NF	12	3	380V/50-60HZ	2"	1080	600	1880
OSGHM-15NF	16	4	380V/50-60HZ	DN65	1200	650	2000
OSGHM-20NF	22	5	380V/50-60HZ	DN80	1350	680	2100
OSGHM-25NF	27	6	380V/50-60HZ	DN80	1450	700	2400
OSGHM-30NF	32	8	380V/50-60HZ	DN100	1550	750	2400
OSGHM-40NF	38	10	380V/50-60HZ	DN100	1700	800	2400
OSGHM-45NF	45	10	380V/50-60HZ	DN125	1800	800	2500
OSGHM-55NF	55	15	380V/50-60HZ	DN125	1900	850	2550
OSGHM-65NF	65	18	380V/50-60HZ	DN125	2100	900	2650
OSGHM-85NF	85	27	380V/50-60HZ	DN150	2300	1000	2800
OSGHM-110NF	110	39	380V/50-60HZ	DN150	2400	1100	2900
OSGHM-135NF	135	50	380V/50-60HZ	DN150	2550	1200	3000
OSGHM-160NF	160	60	380V/50-60HZ	DN200	2650	1350	3050
OSGHM-200NF	200	85	380V/50-60HZ	DN200	2800	1450	3050

Product Specification

Reliable Design

Supporting ceramic balls are used at the bottom of the adsorption tower to make the air distribution more uniform, which can not only prevent the adsorbent at the bottom from soaking in water, but also prolong the life of the adsorbent.

With the specially designed stainless steel diverter, the pressure loss can be greatly reduced.

Special tailor-made high-performance adsorbent can achieve excellent dew point.

The whole series is equipped with high-performance pneumatic valves as standard. The reliability and pressure loss are greatly worried about thin film valves, solenoid valves, etc.

Equipped with multiple protection electric heaters, greatly improving reliability.

Various Control Options

A full range of standard microcomputer controllers.

Optional: Siemens, ABB and other brands of PLC, touch screen, etc.

Can meet the user's various communication requirements from Profibus, Modbus, to Ethernet connection.

seven hearts T, January Dagger

Energy-Saving Control

The optional HIF load energy-saving control system can more accurately control the regenerative energy consumption under the condition of ensuring the performance.

Compared with the fixed cycle control mode, it can save at least 8% of the comprehensive energy consumption.

The optional HDC dew point energy-saving control system can prolong the adsorption time and reduce the comprehensive energy consumption to less than 75% under load fluctuation conditions.

Frequently Asked Questions

What is the advantage of using supporting ceramic balls in the adsorption tower?

Supporting ceramic balls make the air distribution more uniform. They prevent the adsorbent at the bottom from soaking in water and prolong the overall operating life of the adsorbent.

Which brands of PLC are compatible with the control systems?

The systems offer standard microcomputer controllers with options to integrate PLC and touch screens from reputable brands such as Siemens and ABB.

What communication protocols do these systems support?

They can support various industrial communication requirements, including Profibus, Modbus, and Ethernet connections.

How does the optional HIF energy-saving system reduce consumption?

The optional HIF load energy-saving control system accurately manages the regenerative energy consumption during load fluctuations, saving at least 8% of comprehensive energy consumption compared to fixed cycle systems.

Can the system optimize performance under varying load conditions?

Yes, the optional HDC dew point energy-saving control system extends the adsorption time and reduces the comprehensive energy consumption to less than 75% under load fluctuation conditions.

What type of valves are standard in this product series?

The entire series comes standard with high-performance pneumatic valves, which offer superior reliability and lower pressure loss compared to standard thin film or solenoid valves.
