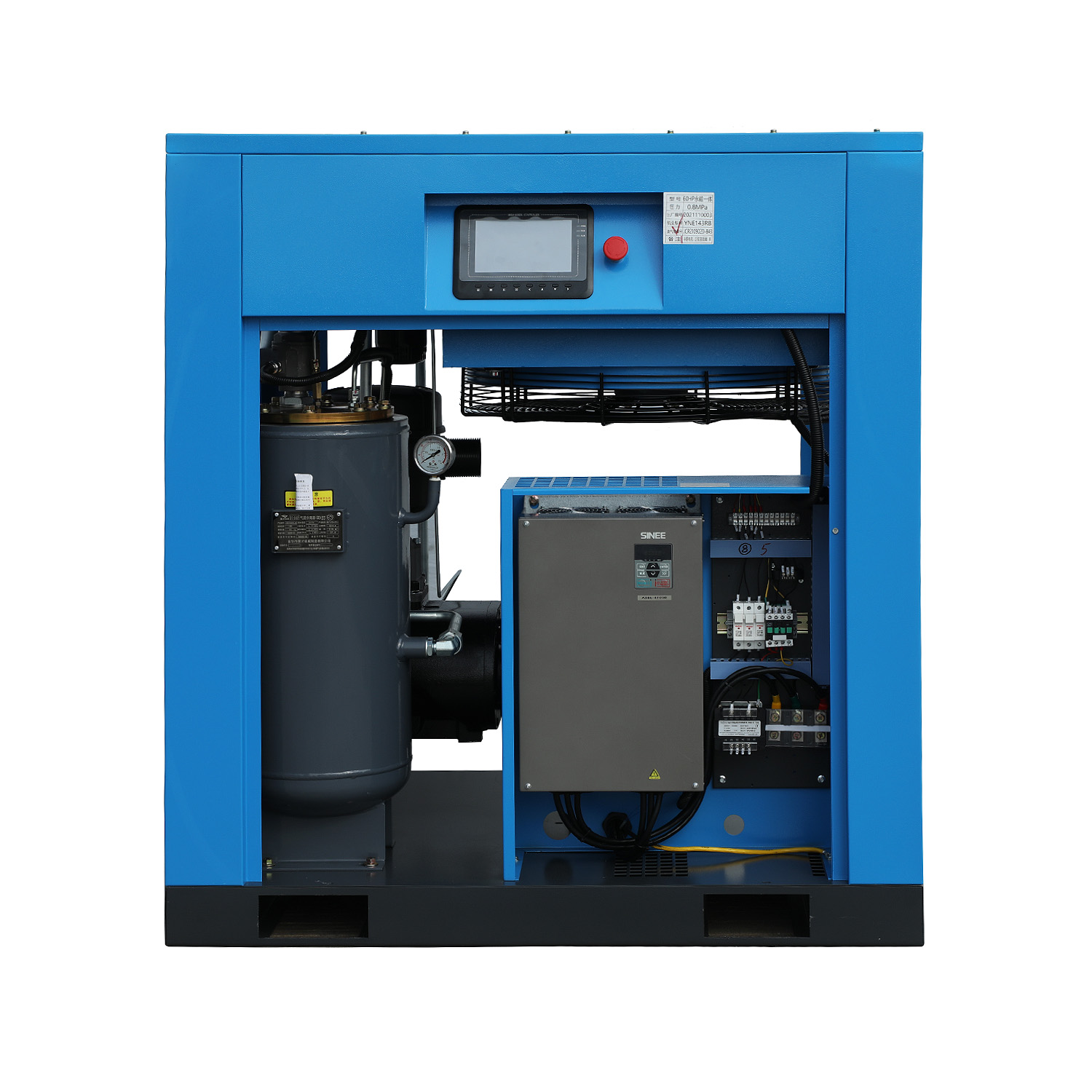

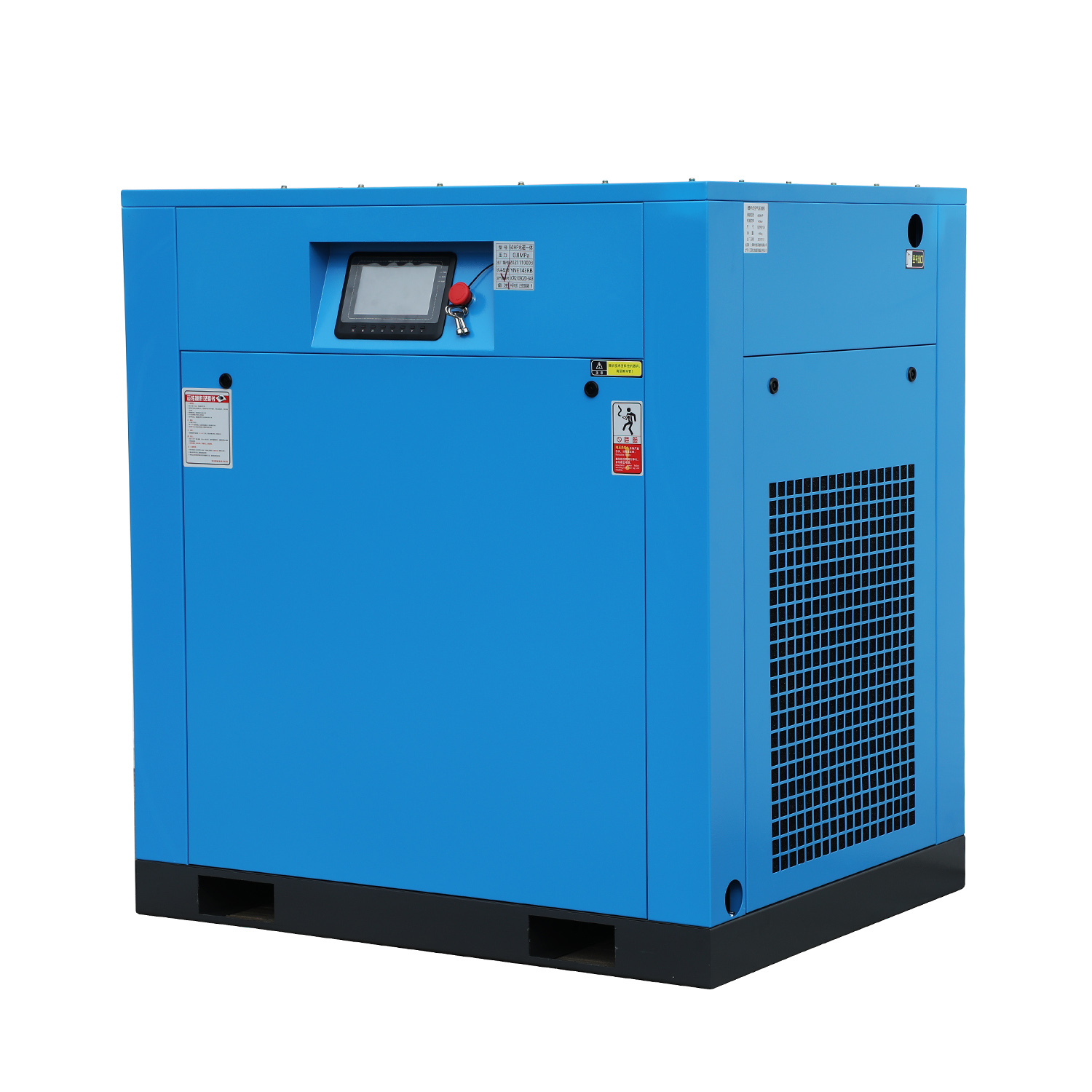

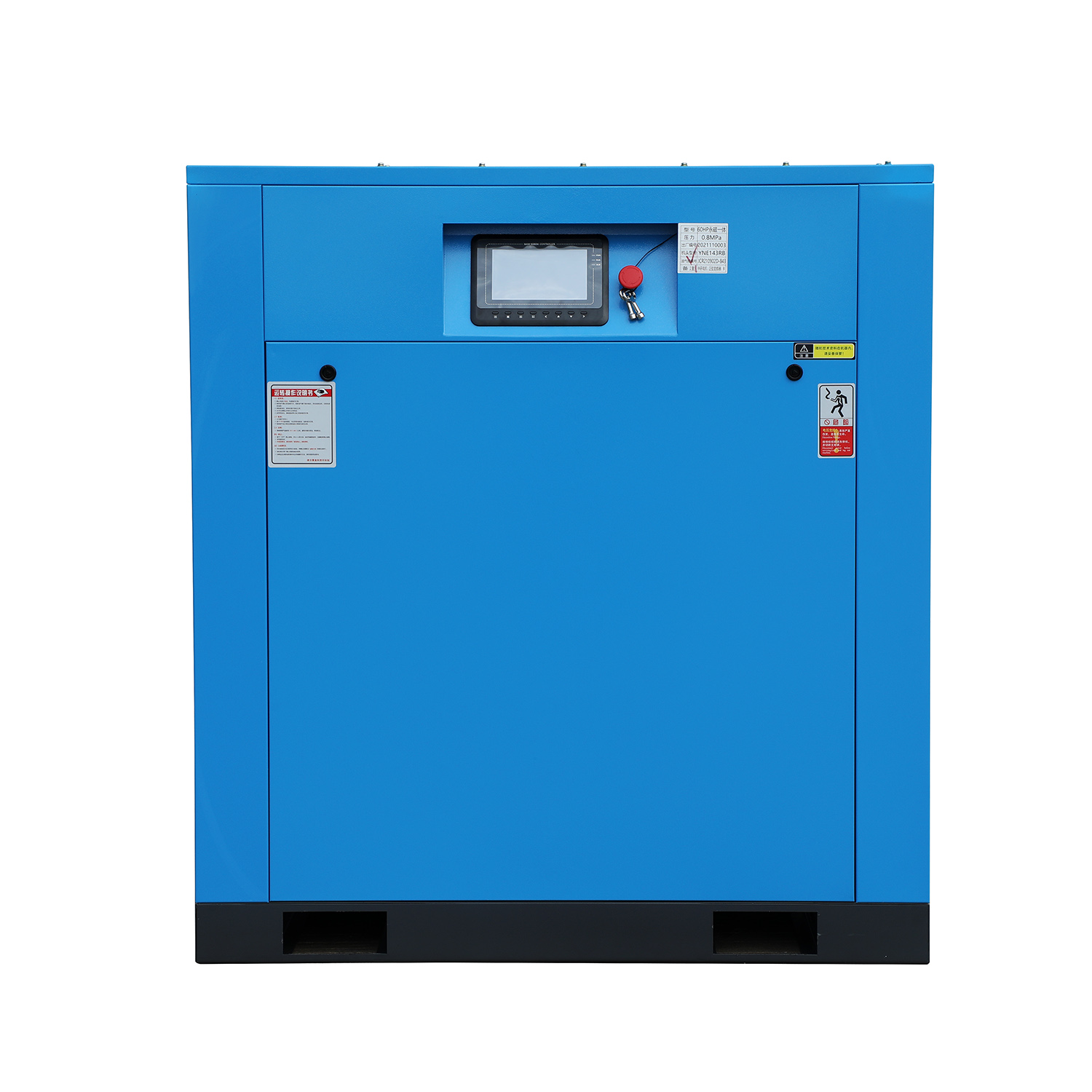

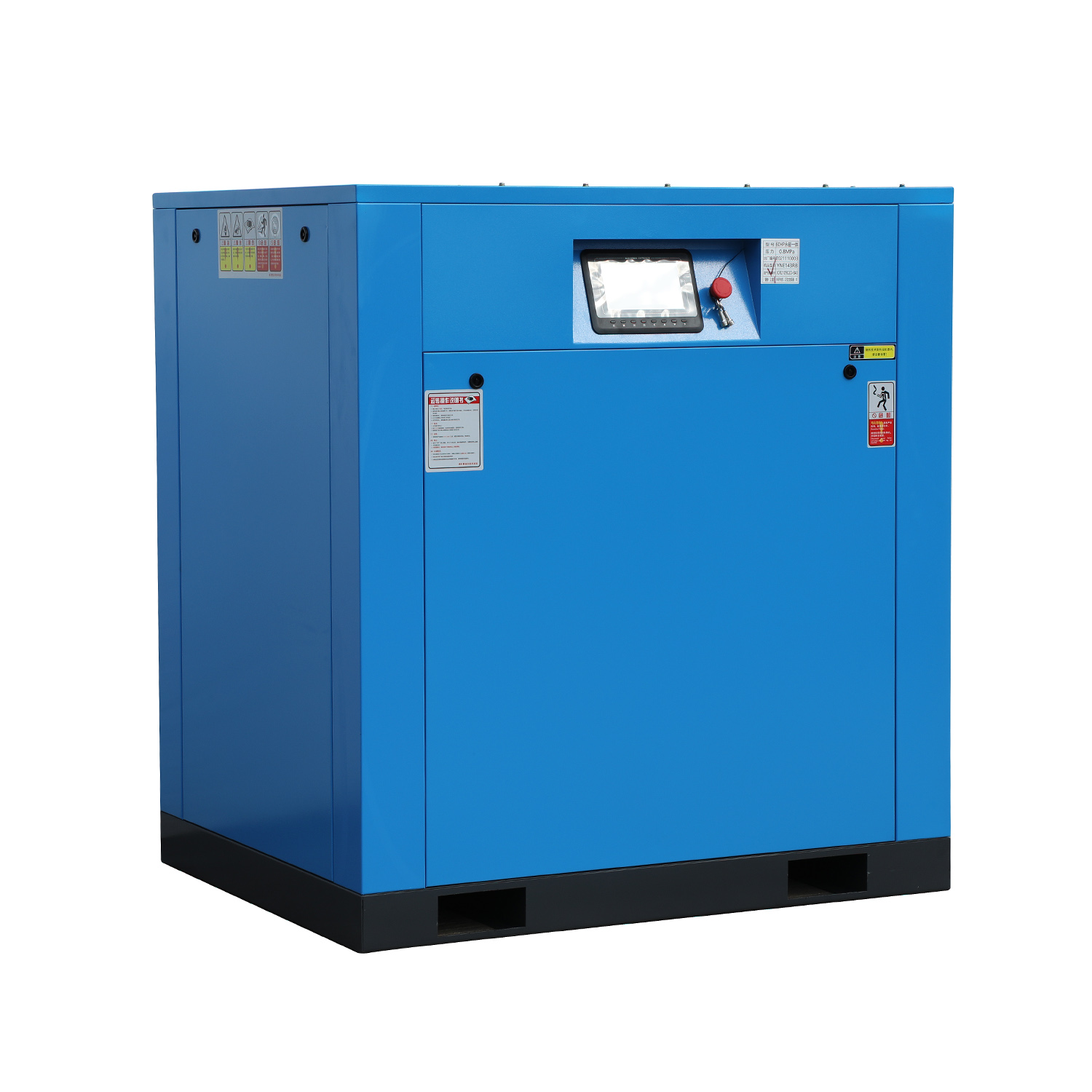

VFD screw air compressor is also called variable frequency drive screw compressor, the type of compressor equipped with an inverter to control the compressor produce compressed air according to customers air demand. VFD compressor is energy-saving than fixed frequency drive screw compressor Working Power: 7.5~45KW(10~6HP) integrated models,55-250kw (75-350HP) direct drive VFD PM models Working Pressure: 7/8/10/12.5 Super Premium Efficiency
  • ● Oil-cooled motor.
  • ● Fully enclosed lP32/54protection.
  • ● Reach lE3 efficiency standard.
  • ● VSD: variable speed drive.
  • ● Optimal cooling for all speeds and ambient conditions.
  • ● Bearing free motor requires zero maintenance.
  • ● UH series Permanent magnets resist to 180°℃
  • ● F grade insulation and B grade temperature rise assessment.
  • ● High temperature design prevents demagnetization.

Send Inquiry

Product Description

We use proprietary algorithms to adjust compressor speed based on the factory's changing load demands. This provides the precise air volume and pressure required by our customers, while maximizing energy savings. Through wide-range variable frequency control, wide-range control, and an emergency stop function, we achieve energy savings regardless of load. The permanent magnet motor features a double-shell design with an oil passageway between the inner and outer shells. This utilizes the compressor's own lubrication system to circulate cooling through the oil passageway, eliminating contact with external cooling air and making it ideal for use in dusty environments.
VFD screw air compressor is also called variable frequency drive screw compressor, the type of compressor equipped with an inverter to control the compressor produce compressed air according to customers air demand. VFD compressor is energy-saving than fixed frequency drive screw compressor.
Key Working Output Features
Constant Pressure Output
Constant pressure control provides significant energy savings, keeping pressure fluctuations within ±0.01 MPa.
Constant Temperature Output
The typical set temperature is 81°C, ensuring optimal lubrication performance while preventing sudden shutdowns caused by high temperatures.
Technical Parameters
XZV-Series Technical Parameters (10A - 75A)
Model 10A 15A 20A 25A 30A 40A X50A 60A 75A
Free Air Delivery / Discharge Pressure
(m³/min / MPa)		 0.7 MPa 1.1 1.65 2.5 3.0 3.7 5.0 6.5 8.0 10.8
0.8 MPa 1.0 1.5 2.3 2.9 3.5 4.8 6.2 7.5 10.2
1.0 MPa 0.9 1.53 2.1 2.7 3.1 4.3 5.6 6.8 9.0
1.25 MPa 0.8 1.1 1.7 2.4 2.7 4.0 5.0 5.6 7.6
Air Supply Temperature ≤ ambient temperature +8~15°C
Motor Power (kW/HP) 7.5/10 11/15 15/20 18.5/25 22/30 30/40 37/50 45/60 55/75
Start Method Y-Δ Starter
Voltage (V/Hz) 380V 3PH 50HZ (380V-3PH-60HZ / 460V-3PH-60HZ / 220V-3PH-60HZ / 400V-3PH-50HZ / 6000V-3PH-50HZ / other customized voltages)
Drive Method Direct Drive
Oil Content (PPM) ≤ 3
Connector (Inch) 3/4" 3/4" 1" 1" 1" 1 1/4" 1 1/4" 1 1/2" 1 1/2"
Noise (dB) ± 2 66 68 68 68 68 68 72 72 75
Dimension Length (mm) 850 1100 1100 1250 1250 1250 1350 1350 1800
Width (mm) 670 750 750 850 850 850 1000 1000 1230
Height (mm) 870 920 920 1160 1160 1160 1190 1190 1570
Weight (kg) 178 260 267 310 396 450 586 593 1073
XZV-Series Technical Parameters (100A - 350A)
Model 100A 120A 150A 175A 200A 250A 300A 350A
Free Air Delivery / Discharge Pressure
(m³/min / MPa)		 0.7 MPa 13.4 16.2 21.0 24.5 28.7 32.0 36.0 42.0
0.8 MPa 12.6 15.0 19.8 23.2 27.6 30.4 34.3 40.5
1.0 MPa 11.2 13.8 17.4 20.5 24.6 27.4 30.2 38.2
1.25 MPa 10 12.3 14.8 17.4 21.5 24.8 27.7 34.5
Air Supply Temperature ≤ ambient temperature +8~15°C
Motor Power (kW/HP) 75/100 90/120 110/150 132/175 160/200 185/250 220/300 250/350
Start Method Y-Δ Starter
Voltage (V/Hz) 380V 3PH 50HZ (380V-3PH-60HZ / 460V-3PH-60HZ / 220V-3PH-60HZ / 400V-3PH-50HZ / 6000V-3PH-50HZ / other customized voltages)
Drive Method Direct Drive
Oil Content (PPM) ≤ 3
Connector (Inch) 2" 2" 2 1/4" 2 1/2" 2 1/2" 2 1/2" DN100 DN100
Noise (dB) ± 2 78 85 85 85 88 88 90 90
Dimension Length (mm) 1900 1900 2300 2300 2650 2650 3300 3300
Width (mm) 1230 1230 1470 1470 1650 1650 2100 2100
Height (mm) 1570 1570 1840 1840 2045 2045 2045 2190
Weight (kg) 1171 1327 1801 1848 2400 2600 3100 3300
Advantages
✔
The compressor was energy-saving, will save electric cost for the user.
✔
The price of the compressor is fair, not expensive.
✔
The compressor has enough air discharge, meets user's compressed air need.
Frequently Asked Questions (FAQ)
1. How about the quality of your compressor?
Good-quality with 21 years experience.
2. Could you send the machine to overseas?
Yes, of course! Please tell me your port.
3. Could you make a certificate of original for me?
Yes, I will make based on your country.
4. What material would you use to pack your machine?
We will use a wooden to pack our compressor.
5. Could you take a photo of the machine before the transportation?
OK, I will take videos and photos for you!
6. Which kinds of motor do your compressor use?
Our compressor uses PM motor and inverter.
