ODM 0.6,m³-60m³ heatless regenerative adsorption for drying compressed air Supplier, Factories

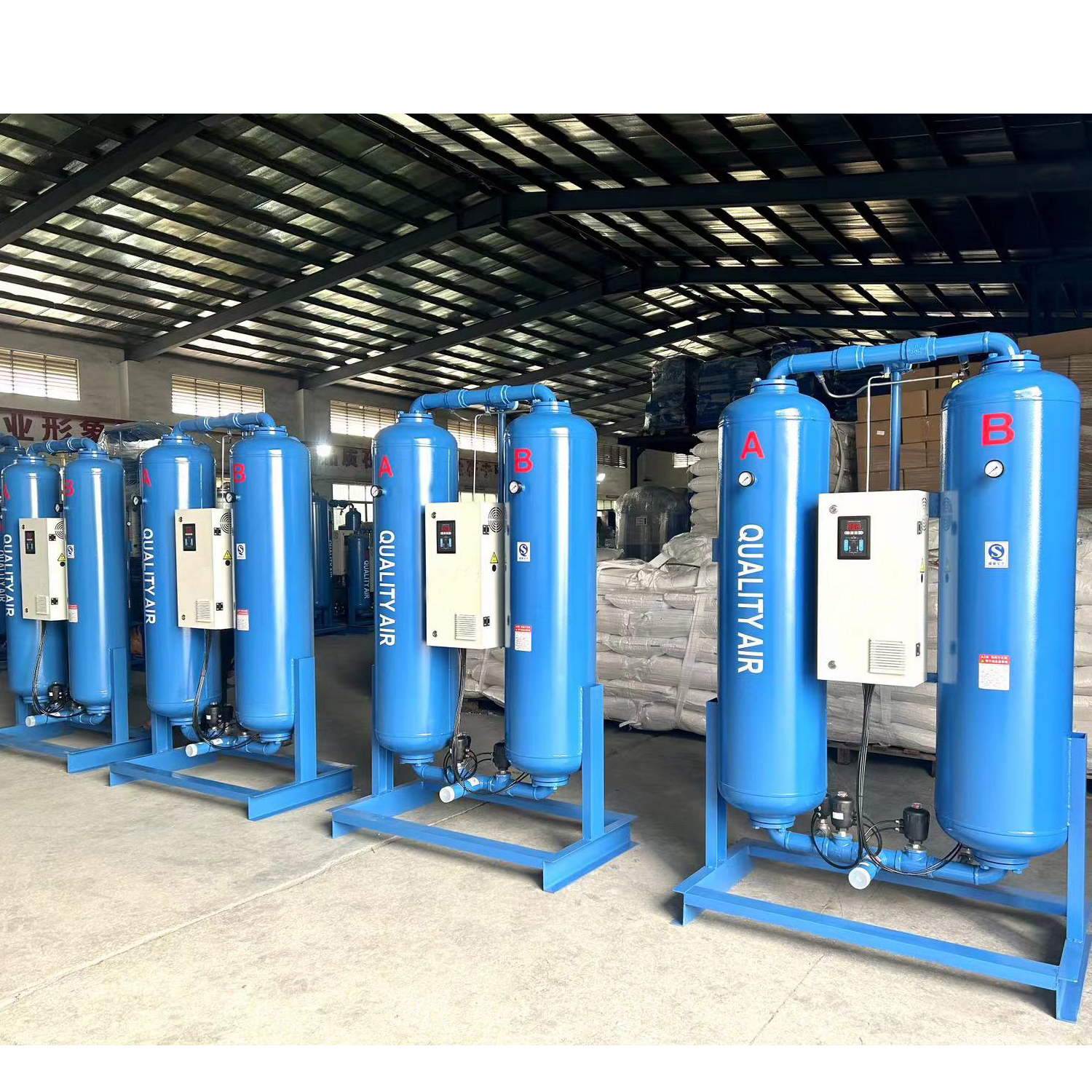

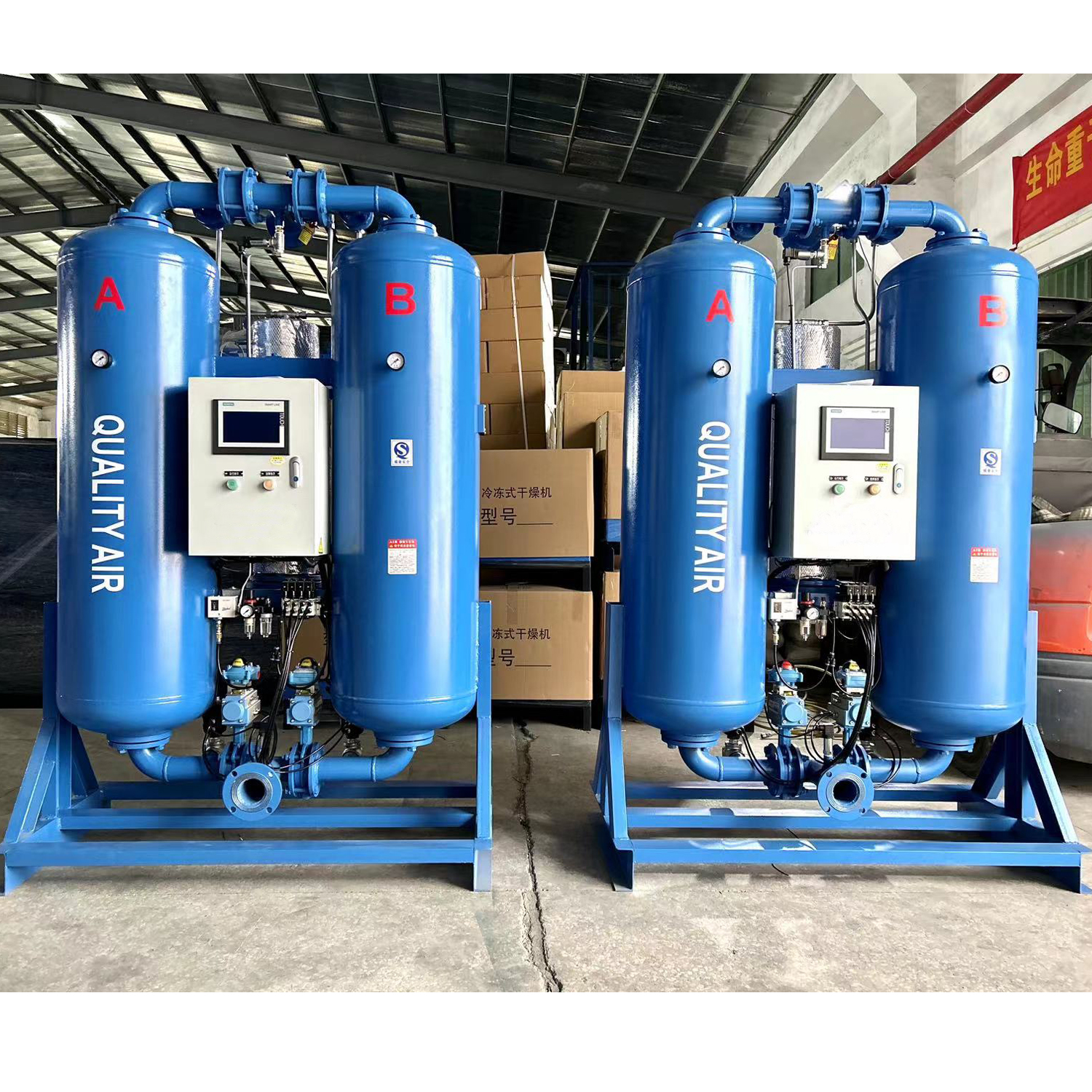

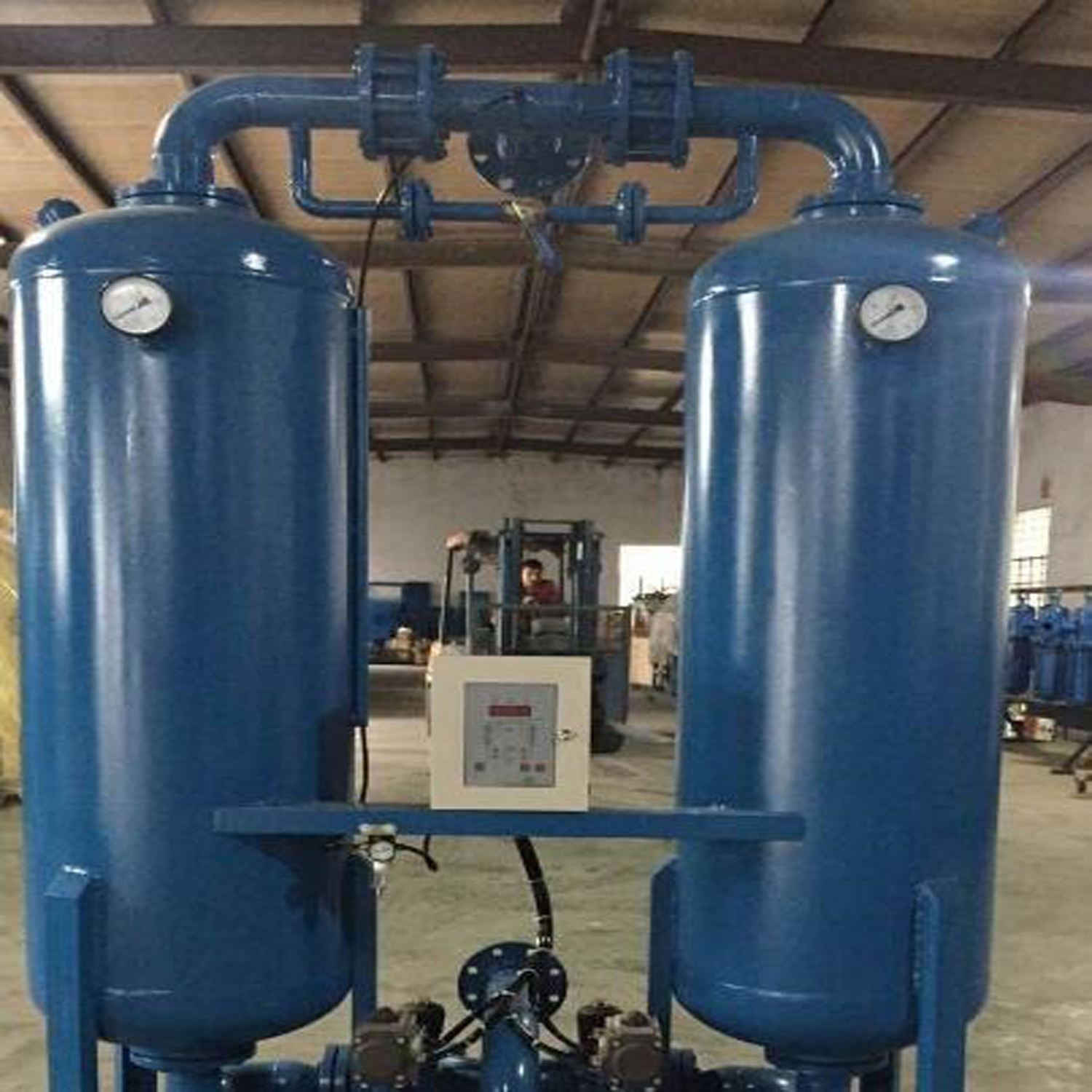

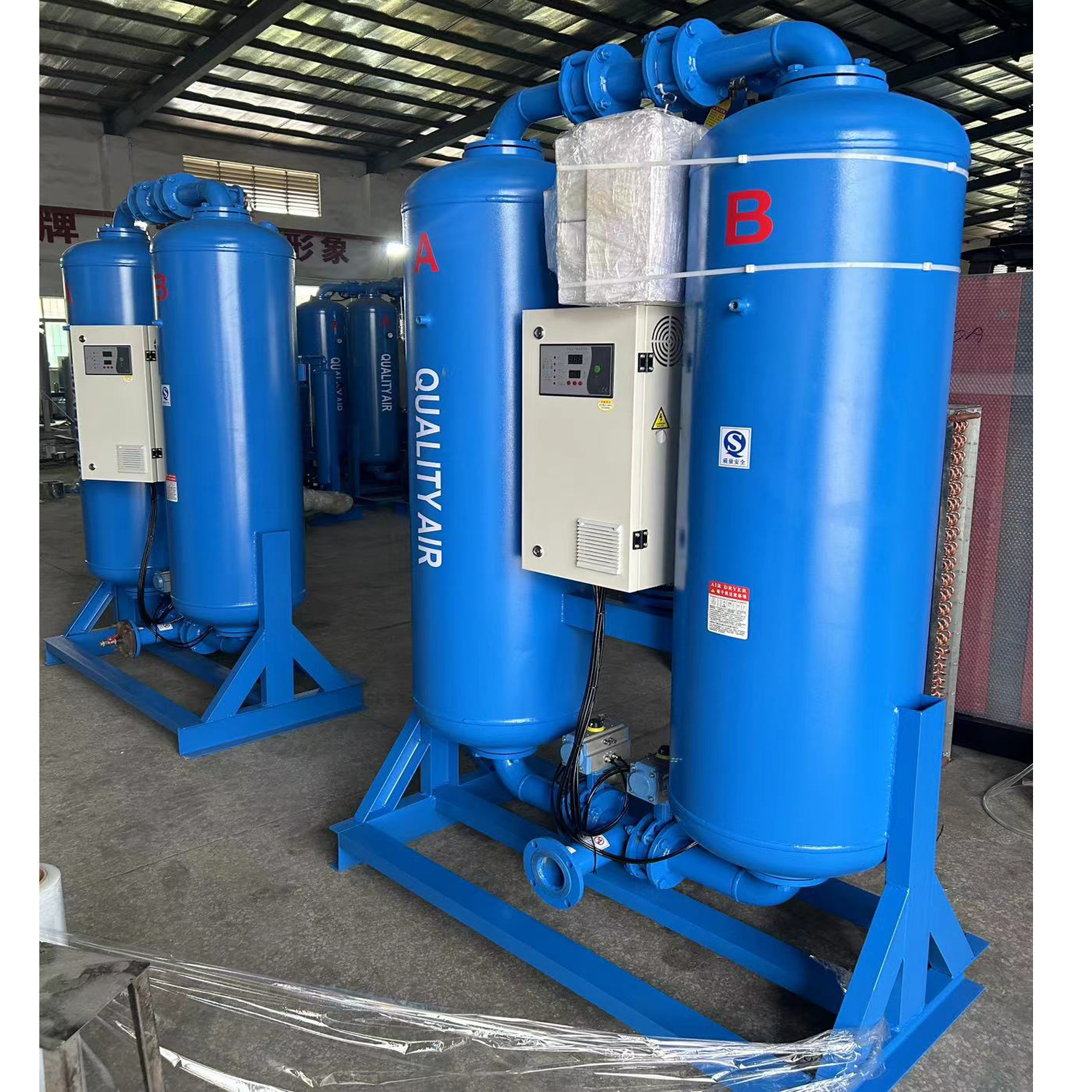

1.5-500 m3/min heatless regenerative adsorption for drying compressed air
The heatless regenerative adsorption compressed air dryer is specially designed for high-quality dry compressed air customers. It is suitable for various types of air compressors from 0.6 cubic to 60 cubic meters and can be used in all production systems.
Design conditions
Flow range: 1.5-500 m3/min
Pressure range: 0.6-1.0 MPa
Intake temp:,s:;45it
Regenerated gas volume: spoon 5%
Working cycle: 4-20 minutes
Pressure dew point: -20 seven, -40 it
Intake oil content:,s:;0.1 PPM Adsorbent: alumina + molecular sieve
Power supply: 220V /1Ph/50HZ
＊High pressure and stainless steel can be customized.
*Customization is welcome for above 1.0MPa.

Send Inquiry

Product Description

Product Specifications

Model	Flow (m³/min)	Power (kW)	Voltage	Connection Size	Length (mm)	Width (mm)	Height (mm)
OSGHL-1NF	1.5	0.2	220-230V/50-60HZ	3/4"	680	400	1400
OSGHL-2NF	2.5	0.2	220-230V/50-60HZ	3/4"	800	400	1700
OSGHL-3NF	3.8	0.2	220-230V/50-60HZ	1"	860	500	1750
OSGHL-6NF	6.8	0.2	220-230V/50-60HZ	1 1/2"	990	550	1830
OSGHL-8NF	8.5	0.2	220-230V/50-60HZ	2"	1080	600	1600
OSGHL-12NF	12	0.2	220-230V/50-60HZ	2"	1080	600	1880
OSGHL-15NF	16	0.2	220-230V/50-60HZ	2"	1200	650	2000
OSGHL-20NF	22	0.2	220-230V/50-60HZ	DN65	1350	680	2100
OSGHL-25NF	27	0.2	220-230V/50-60HZ	DN80	1450	700	2400
OSGHL-30NF	32	0.2	220-230V/50-60HZ	DN80	1550	750	2400
OSGHL-40NF	38	0.2	220-230V/50-60HZ	DN100	1700	800	2400
OSGHL-45NF	45	0.2	220-230V/50-60HZ	DN100	1800	800	2500
OSGHL-55NF	55	0.2	220-230V/50-60HZ	DN125	1900	850	2550
OSGHL-65NF	65	0.2	220-230V/50-60HZ	DN125	2100	900	2650
OSGHL-85NF	85	0.2	220-230V/50-60HZ	DN125	2300	1000	2800
OSGHL-110NF	110	0.2	220-230V/50-60HZ	DN150	2400	1100	2900
OSGHL-135NF	135	0.2	220-230V/50-60HZ	DN150	2550	1200	3000
OSGHL-160NF	160	0.2	220-230V/50-60HZ	DN200	2650	1350	3050
OSGHL-200NF	200	0.2	220-230V/50-60HZ	DN200	2800	1450	3050

Product Advantages

Reliable Design

The bottom of the adsorption tower features supporting balls to ensure uniform air flow distribution, preventing the adsorbent at the bottom from soaking in water and extending its lifespan. Additionally, the custom stainless copper shunt minimizes pressure loss, while the high-performance adsorbent secures excellent dew points. Commercially available pneumatic valves guarantee reliability far exceeding membrane or solenoid valves.

Various Control Options

Equipped with a standard range of microcomputer controllers. Optional integration with top-tier brands like Siemens and ABB PLCs, featuring responsive touch screens. Supports diverse communication requirements including Profibus, Modbus, and Ethernet connections to seamlessly fit into your current network infrastructure.

Energy Saving

The optional HDC dew point energy-saving control system dynamically adjusts operations according to load. By extending the adsorption cycle times, it significantly reduces comprehensive energy usage to below 75% under fluctuating load working conditions.

Frequently Asked Questions (FAQ)

How does the supporting ball design extend adsorbent lifespan?

The supporting balls at the bottom of the adsorption tower distribute the air flow more evenly. This specific structure prevents the adsorbent from directly soaking in accumulated water, significantly reducing deterioration and prolonging overall service life.

What control communications are supported by the PLC upgrades?

With our optional PLC configurations from reputable brands like Siemens or ABB, users can connect systems via Profibus, Modbus, or directly using standard Ethernet connections.

What makes the HDC dew point control system energy efficient?

The optional HDC dew point control system actively monitors moisture load. When the system operates under partial load, it extends the adsorption phase time, keeping energy consumption below 75% compared to non-regulated models.

Why are pneumatic valves preferred over membrane/solenoid options?

Pneumatic valves are standard across our product line because they offer superior durability, much tighter sealing performance, and a significantly lower pressure loss profile than standard membrane or solenoid alternatives.

What are the power and voltage requirements for these models?

All listed models run on a standard voltage profile of 220-230V at 50-60HZ, utilizing an energy-efficient power rating of 0.2 kW.
