AC Power 0.3mpa to 0.5mpa 3bar -5bar Low Pressure Screw Air Compressor for Industrial Electrical Working Pressure: 3 - 5bar Air Delivery: 7.0 - 60m3/min Motor Power: 30 kw to 250kw Type of Driving: Direct Driven Type of Cooling: Air Cooling/Water Cooling
Send Inquiry

Product Description

Product Specification
Model EL-30A EL-37A EXL-45A EXL-55A EXL-75A EXL-90A EXL-110A EXL-132A EXL-160A EXL-185A EXL-250A
Air flow / pressure (m³/min / MPa) 7/0.4 9.2/0.4 12.2/0.4 15.9/0.4 20.0/0.4 23.0/0.4 27.5/0.4 30.0/0.4 42.0/0.4 45.0/0.4 60.0/0.4
Air supply temperature ≤ ambient temperature +8~15°C
Motor Power (kW/HP) 30/40 37/50 45/60 55/75 75/100 90/120 110/150 132/175 160/215 185/250 250/355
Start method star triangle start/VSD start with model with V
Voltage (V/Hz) 380V/60HZ/3P / 440V/60HZ/3P / 220V/60HZ/3P / 380V/50HZ/3P / 410V 50HZ 3P / 415V 50HZ 3P / 230V 60HZ 3P / 480V 60HZ 3P or other voltages can be customized
Drive method direct drive
Oil content (PPM) ≤3
Dimension Length (mm) 1900 1900 2100 2600 2600 2600 2600 2600 3080 3080 3600
Width (mm) 1260 1260 1260 1280 1280 1280 1280 1280 2000 2000 2000
Height (mm) 1600 1600 1600 1900 1900 1900 1900 1900 2300 2300 2300
Advantages of Low Pressure Air Compressor
1. High Efficiency
Under low-pressure working conditions, low-pressure air compressors have a higher energy efficiency ratio and can reduce energy consumption while meeting the demand for compressed air.
2. Energy Saving
Since the low-pressure air compressor only needs to provide lower compressed air pressure, its power consumption is relatively low, which is beneficial to saving energy.
3. Good Stability
The low-pressure air compressor has good operating stability under low-pressure conditions and can continuously and stably provide the compressed air required for industrial production.
Application

Low-pressure air compressors are widely used in various industrial production fields, including:

Glass industry Cotton spinning Chemical fiber industry Cement industry Food and beverage processing Pharmaceutical and chemical industry Environmental protection and recycling Textile industry Water treatment industry
Packing and Delivery

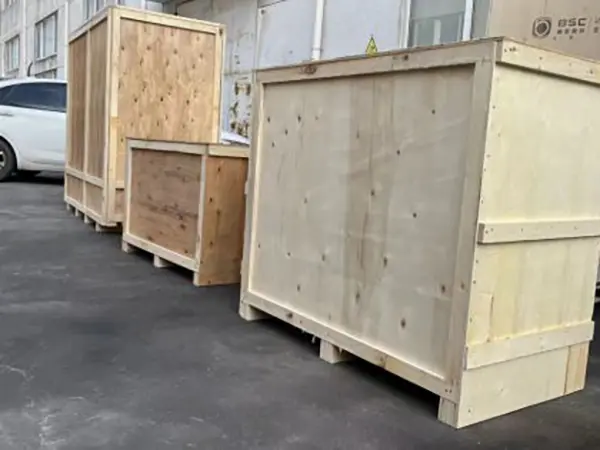

Packing and delivery process

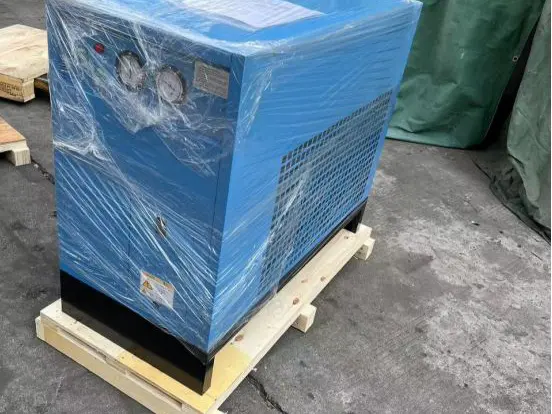

Delivery readiness
Frequently Asked Questions (FAQ)
Q: What is the output pressure of these low pressure air compressors?
The standard discharge pressure for these models is rated at 0.4 MPa, designed specifically to optimize efficiency for low-pressure applications.
Q: Which voltage configurations can be customized?
We support standard configurations such as 380V/60HZ/3P, 440V/60HZ/3P, 220V/60HZ/3P, 380V/50HZ/3P, and 480V/60HZ/3P. Other customized voltage requirements can also be accommodated.
Q: How is the energy saving achieved in low-pressure models?
By outputting lower operating pressure matchable to target demands, the power consumption is reduced compared to higher-pressure units run under throttle, resulting in lower operational costs.
Q: What is the start method for these compressor motors?
These compressors utilize a star-triangle starting mechanism or a VSD (Variable Speed Drive) start system for models designated with a "V".
Q: What is the air quality and oil content level?
The discharge air has a low oil content of less than or equal to 3 PPM, which makes it suitable for sensitive environments like textiles, water treatment, and food processing.
Q: What driving mechanism is used?
These series utilize a direct drive method, which ensures high power transmission efficiency and minimizes maintenance requirements.
