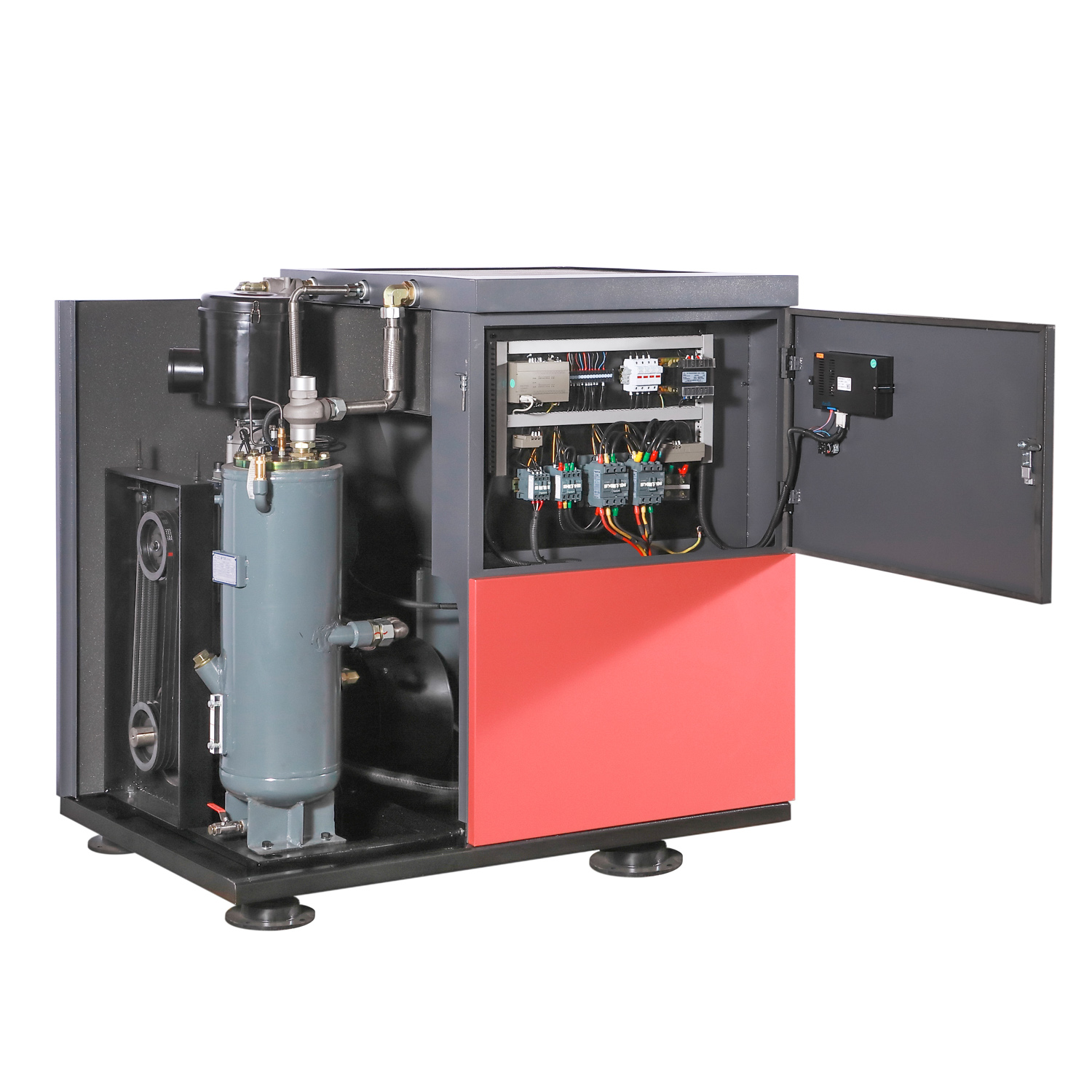

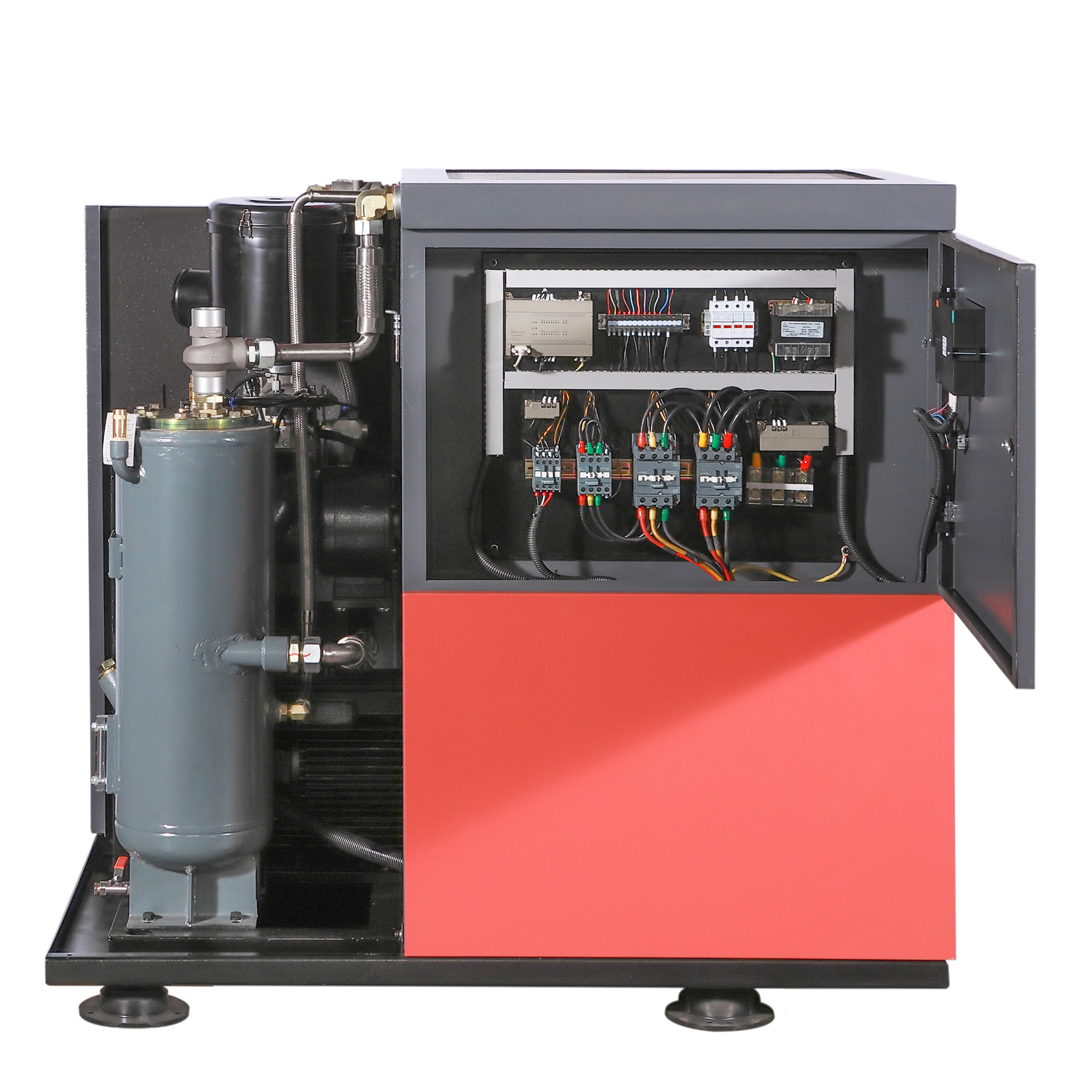

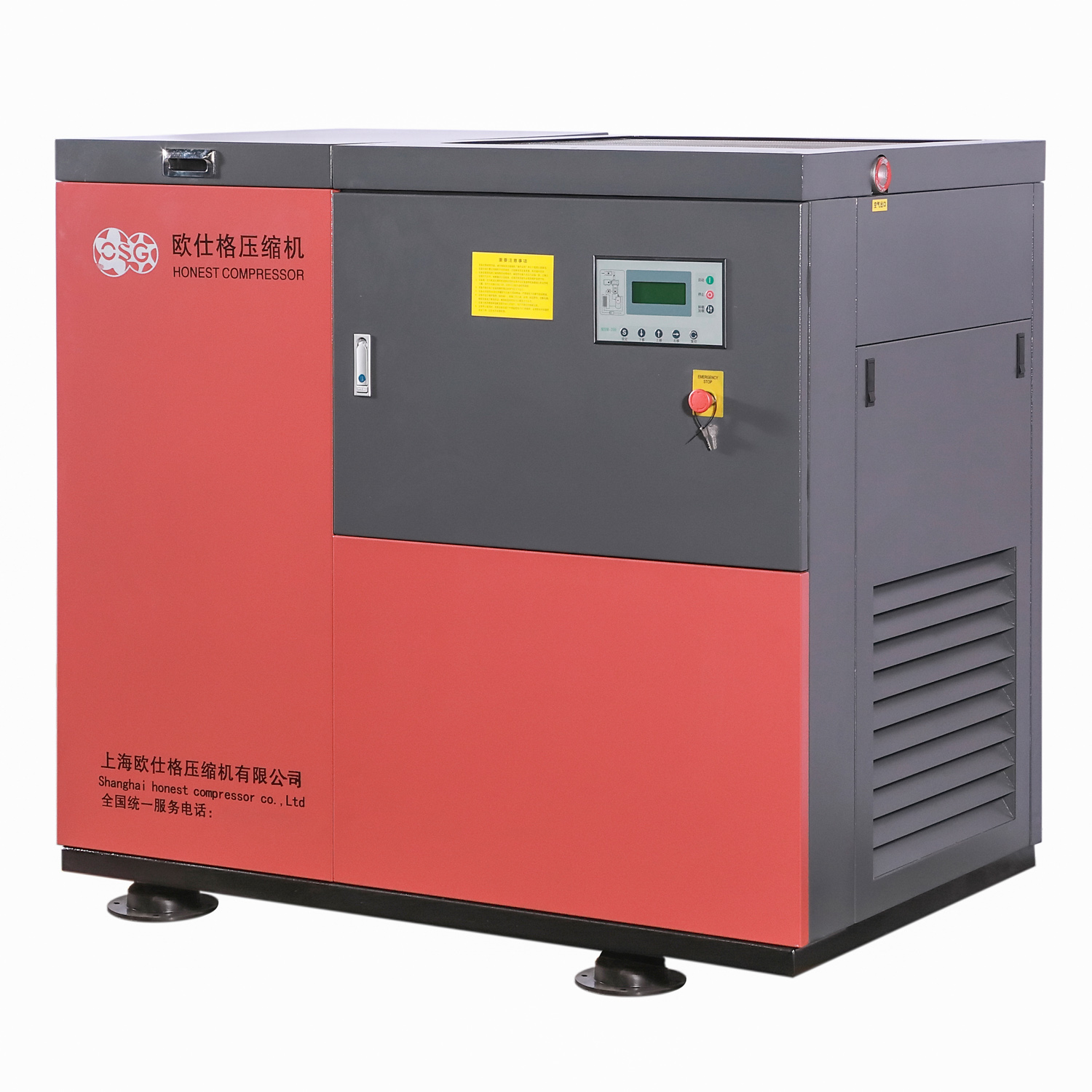

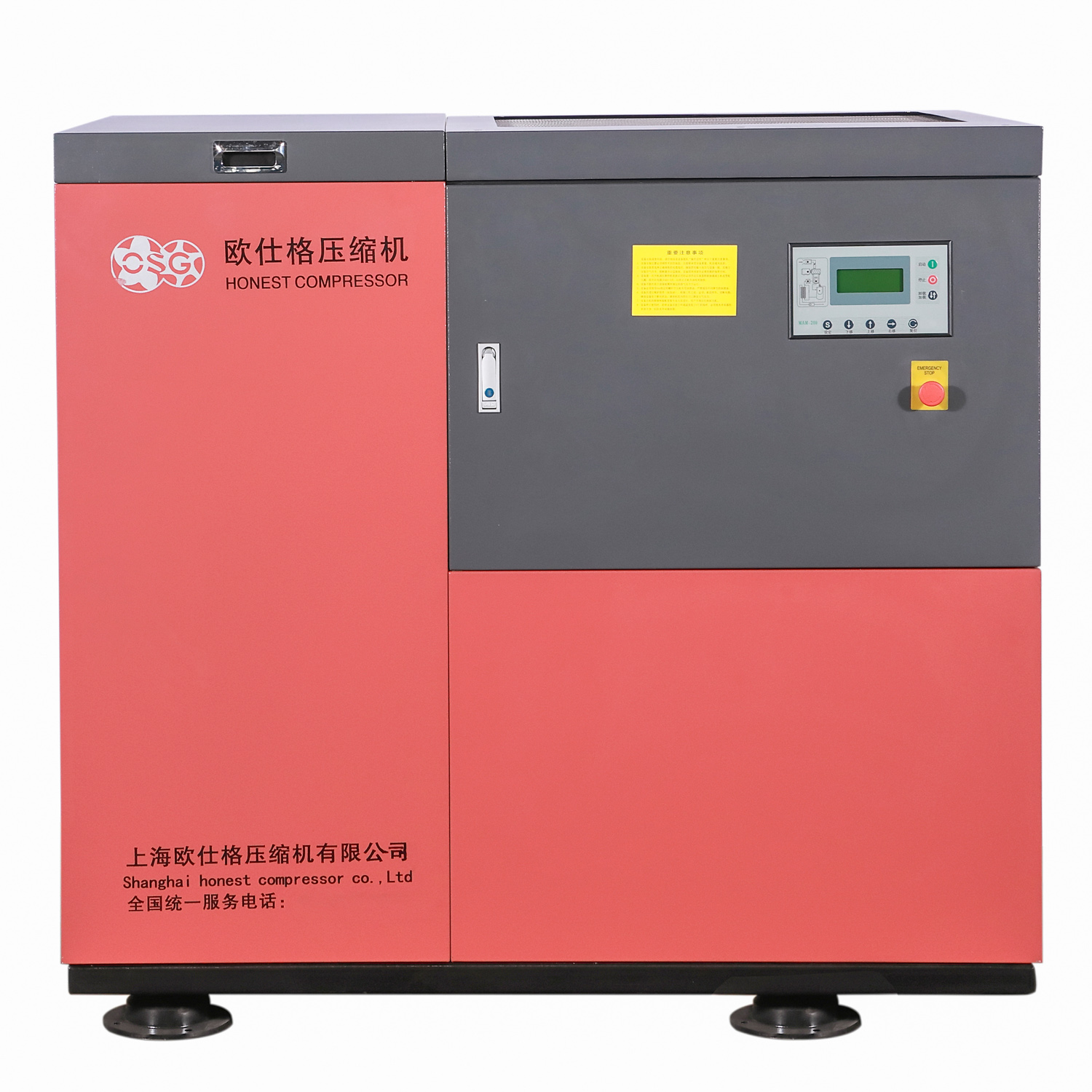

OEM 20bar pressure Screw Air Compressor for laser cutting machine Manufacturer, Exporters

Belt trasmission,easy to adjust and replace.

To avoid the orrurrence of air end damage due to any other fault conditions,protect the normal service life of the compressor Every running state of belt tension reaches to the optimum value. Greatly extend the working life of the belt and reduce the motor and rotor bearing load by avoiding strarup overlarge tension. Easy and fast to replace the belt. 20bar high pressure special for laser cutting High efficiency

Send Inquiry

Product Description

Product Overview

Our EU & E series screw air compressors are high-efficiency, stable industrial air supply equipment, covering power range from 7.5kW to 37kW. With mature screw compression technology, they stably provide compressed air under 1.3MPa and 1.6MPa working pressure; the E-37GA model supports extra high pressure options (1.6MPa/2.0MPa). Widely applied in machinery manufacturing, packaging, plastic, food, textile, construction and other industries as core air source equipment.

Core Performance Advantages

Stable & High Air Output

1.3MPa standard pressure: Stable large displacement, meets daily general factory air consumption.
1.6MPa high pressure: Higher compression ratio, suitable for high-pressure pneumatic tools, precision processing.
E-37GA special version: Reaches max 2.0MPa pressure, catering to special high-pressure process demands.
Complete displacement gradient from 0.7 m³/min to 3.9 m³/min, perfectly matching small, medium production lines.

Energy-saving Motor & Reliable Power

Equipped with high-efficiency three-phase asynchronous motor (7.5HP – 50HP range):

Low energy loss, high conversion efficiency, long continuous operation life.
Stable torque, no overload stall under full-load operation.
Low heating value, effectively reducing unit failure rate during long-time running.

Ultra-low Noise Design

EU-8GA/11GA/15GA models: Noise controlled at 68±2dB(A), close to office noise level.
E-18GA/22GA/30GA/37GA models: Noise 70±2dB(A).
Integrated full sound insulation enclosure, internal noise absorption cotton + shock absorption base. Can be placed directly inside production workshop.

Compact Structure & Easy Installation

Small footprint: EU small models only 900 x 850 x 940mm, easy to move and place in narrow workshops.
Robust frame: Unit weight ranges 230kg–850kg, thickened metal frame resists vibration deformation.
Standard outlet: 3/4", 1", 1-1/4" caliber, quick connection to air pipes.

Product Specification

Specifications	EU-8GA	EU-11GA	EU-15GA	E-18GA	E-22GA	E-30GA	E-37GA
Exhaust Volume / Exhaust Pressure (m³/min/MPa)	0.7/1.3 0.5/1.6	1.2/1.3 1.0/1.6	1.7/1.3 1.5/1.6	2.2/1.3 1.8/1.6	2.6/1.3 2.2/1.6	3.6/1.3 3.2/1.6	3.9/1.6 3.0/2.0
Motor Power (KW/HP)	7.5/10	11/15	15/20	18.5/25	22/30	30/40	37/50
Noise dB(A)	68±2	68±2	68±2	70±2	70±2	70±2	70±2
Dimension L x W x H (mm)	900×850×940	900×850×940	900×850×940	1290×900×1190	1290×900×1190	1290×900×1190	1520×955×1450
Net Weight (Kg)	230	262	292	450	500	600	850
Outlet Diameter	3/4"	3/4"	3/4"	1"	1"	1"	1-1/4"

Application Fields

Screw air compressors for laser cutting are widely used in sheet metal processing, metal processing, advertising production, kitchen utensils, automobiles, lamps, saw blades, elevators, metal crafts, textile machinery, grain machinery, glasses production, aerospace, medical equipment, instrumentation and other industries.

1. Mechanical processing: CNC machine, pneumatic fixture, polishing & cutting equipment

2. Packaging industry: Blow molding, bottle making, bag sealing, printing machine air supply

3. Light industry: Textile loom, shoe making machinery, food filling & canning

4. Construction & hardware: Sandblasting, spray painting, pneumatic wrench, drilling tools

5. Electronic & plastic: Injection molding machine, component assembly, dust blowing cleaning

Our Service Support

Technical & Custom Support

Customization: Can adjust pressure, add dryer/tank integrated machine according to customer working conditions.
Technical support: Free air consumption calculation, factory layout air pipe design scheme.

Global Warranty

Global after-sales: Supply spare parts worldwide, remote video installation & maintenance guidance.
Quality warranty: Main screw host 5-year warranty, whole machine 1-year standard warranty.

Packing and delivery

Screw Air Compressor Loading and Delivery

Frequently Asked Questions (FAQ)

Q1: What are the pressure options available for these screw air compressors?

Our compressors stably provide compressed air under 1.3MPa and 1.6MPa working pressures. The special E-37GA model supports extra high-pressure options of 1.6MPa and 2.0MPa to cater to specific industrial requirements.

Q2: What is the noise level of the EU and E series air compressors?

EU-8GA/11GA/15GA models have a noise level controlled at 68±2dB(A). The larger E-18GA/22GA/30GA/37GA models operate at 70±2dB(A). With built-in soundproofing, they can be placed directly in workshops.

Q3: How energy-efficient are the motors used in these compressors?

They are equipped with premium three-phase asynchronous motors (7.5HP to 50HP) that offer low energy loss, high conversion efficiency, and stable torque with no overload stall under full-load operation.

Q4: Are these compressors difficult to install or maintain?

No. They feature a compact, all-in-one layout with standard outlet diameters (3/4" to 1-1/4") for quick pipe connection. The internal layout is designed for easy access, allowing routine maintenance (replacing filters and oil separator) to be done quickly.

Q5: What kind of warranty and service support do you provide?

We offer a 5-year warranty on the main screw host and a 1-year standard warranty on the entire machine. Global spare parts supply and remote video guidance for installation and maintenance are also provided.
