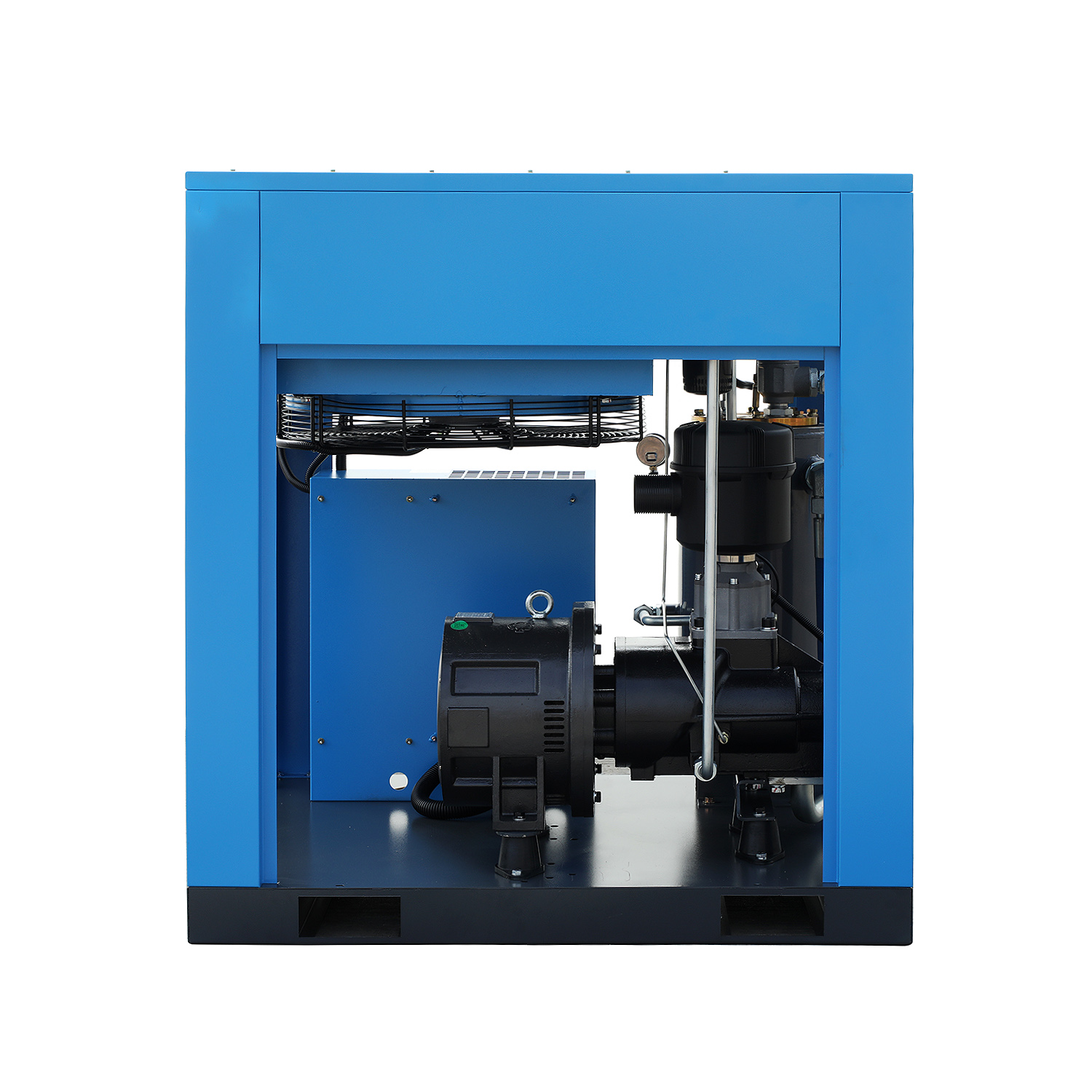

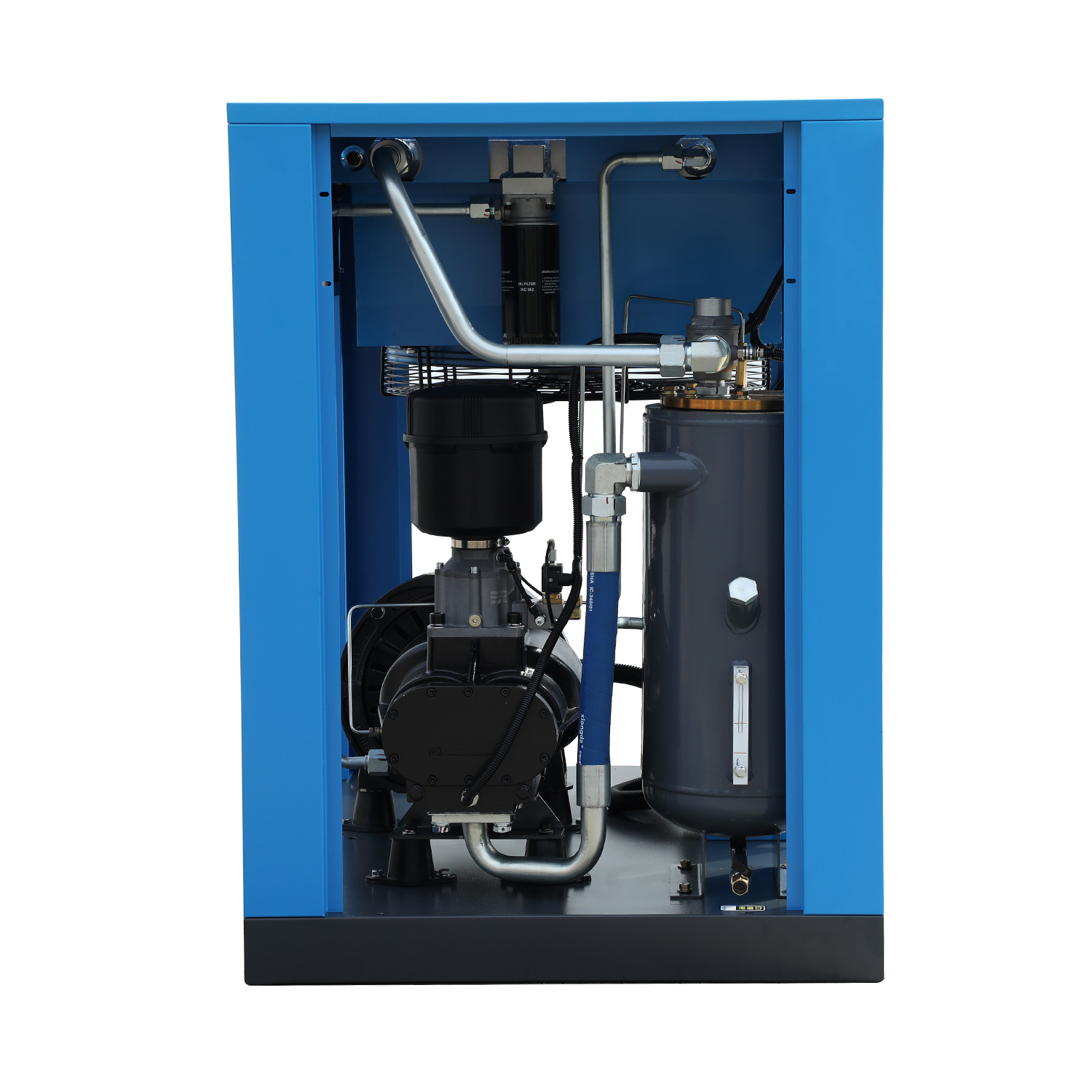

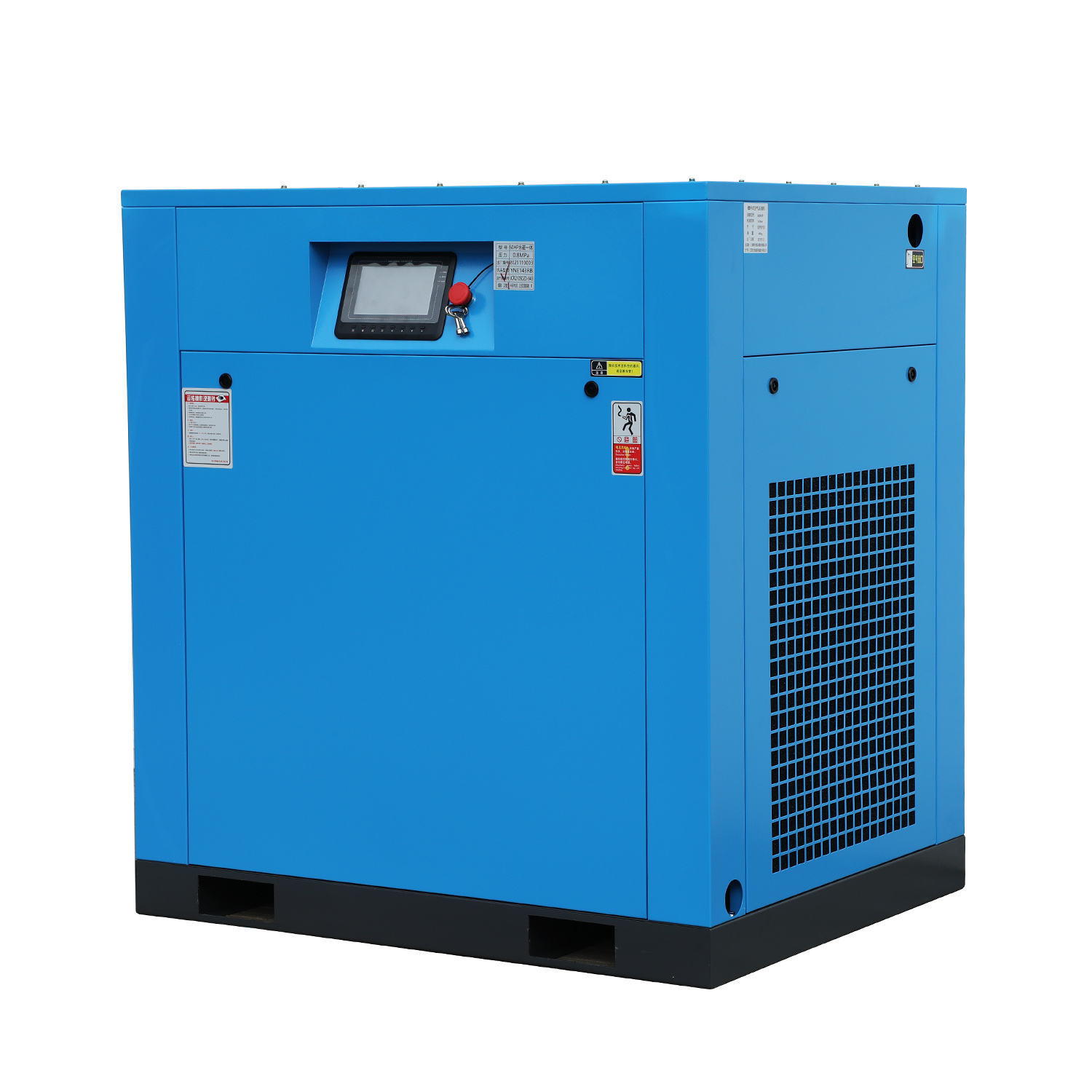

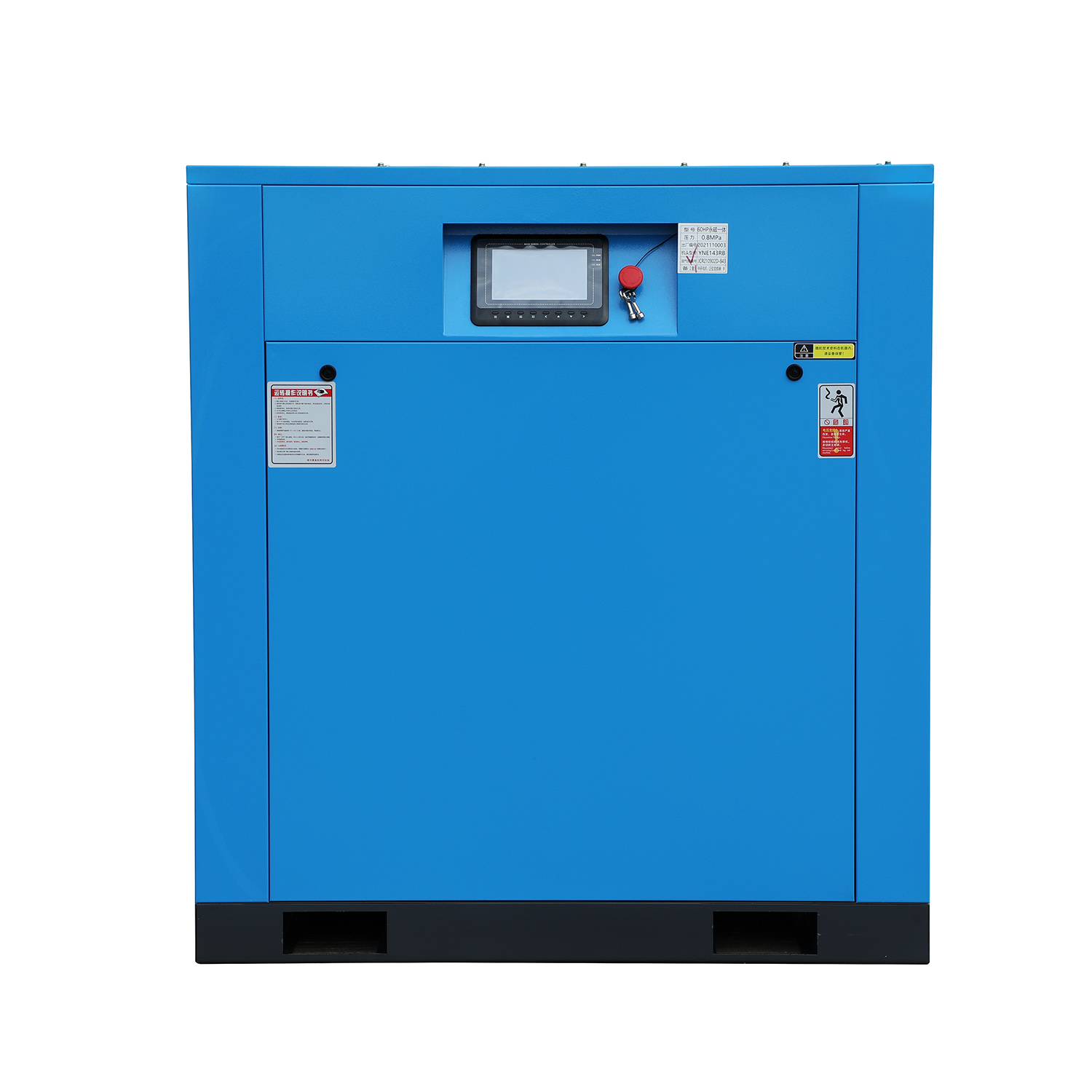

ODM Cheap 7.5-132 KW Frequency Inverter PM VSD Rotary Screw Air Compressor Factory, Factories
✅ Full Power Range: Covers 7.5kW-250kW models to meet diverse industrial air demands.
✅ Multi-Pressure Compatibility: Supports working pressures from 0.7MPa to 1.55MPa.
✅ Low Noise Design: Noise levels range from 66±2 to 75±2 dB(A) for quiet operation.
✅ Efficient Direct Drive: Coaxial/direct link transmission eliminates belt losses for high efficiency.
✅ Soft Start System: Frequency conversion soft start reduces impact on power grids and equipment.
Swipe horizontally to view full table specifications.
Model
10A
15A
20A
25A
30A
40A
50A
60A
Free air delivery / Discharge pressure (m³/min / MPa)
1.2/0.7
1.65/0.7
2.5/0.7
3.2/0.7
3.8/0.7
5.3/0.7
6.8/0.7
7.4/0.7
1.1/0.8
1.5/0.8
2.3/0.8
3.0/0.8
3.6/0.8
5.0/0.8
6.2/0.8
7.0/0.8
0.95/1.0
1.3/1.0
2.1/1.0
2.7/1.0
3.2/1.0
4.5/1.0
5.6/1.0
6.2/1.0
0.8/1.25
1.1/1.25
1.9/1.25
2.4/1.25
2.7/1.25
4.0/1.25
5.0/1.25
5.6/1.25
Lubricating oil quantity (L)
4
7.5
14
14
14
30
30
30
Driving mode
Direct drive
Power supply
380V/50Hz/3P or customized
Power (kW)
7.5
11
15
18.5
22
30
37
45
Startup mode
Y-Δ start-up
Dimension (mm)
850*670*870
1100*750*920
1250*850*1160
1350*1000*1190
Outlet diameter
G¼
G¼
G1
G1
G1
G1¼
G1¼
G1¼
Technical Specifications (75A - 350A)
Swipe horizontally to view full table specifications.
Model
75A
100A
120A
150A
175A
200A
250A
300A
350A
Free Air Delivery / Discharge Pressure (m³/min / MPa)
10.0/0.7
13.4/0.7
16.2/0.7
21.0/0.7
24.5/0.7
28.7/0.7
32.0/0.7
36.0/0.7
42.0/0.7
9.6/0.8
12.6/0.8
15.0/0.8
19.8/0.8
23.2/0.8
27.6/0.8
30.4/0.8
34.3/0.8
40.5/0.8
8.5/1.0
11.2/1.0
13.8/1.0
17.4/1.0
20.5/1.0
24.6/1.0
27.4/1.0
30.2/1.0
38.2/1.0
7.6/1.25
10.0/1.25
12.3/1.25
14.8/1.25
17.4/1.25
21.5/1.25
24.8/1.25
27.7/1.25
34.5/1.25
Lubricating Oil Quantity (L)
65
65
72
90
90
110
110
125
125
Driving Mode
Direct drive
Power (kW)
55
75
90
110
132
160
185
220
250
Startup Mode
Y-Δ Start-up
Dimension (mm)
1800*1230*1570
1900*1230*1570
2300*1470*1840
2650*1650*2045
3300*2100*2190
Weight (kg)
1073
1272
1327
1801
1848
2400
2600
3100
3300
Outlet Diameter
G2
G2
G2
G2½
G2½
G2½
G2½
DN100
DN100
Frequently Asked Questions
What is the driving mode utilized in these air compressors?
All specified air compressor models (from 10A to 350A) employ a Direct Drive transmission mode, which ensures high efficiency, reduced power loss, and lower maintenance requirements compared to belt-driven alternatives.
What startup method do these compressor systems use?
These units utilize a Star-Delta (Y-Δ) start-up configuration. This startup mode effectively minimizes the initial inrush current during startup, protecting the motor and ensuring smoother grid integration.
What are the power supply specifications for these compressors?
The standard power supply configured for these models is 380V/50Hz/3P (3 Phase). However, customized voltage and frequency options are available to meet various regional standard requirements.
How does discharge pressure affect free air delivery?
As the discharge pressure increases (from 0.7 MPa to 1.25 MPa), the free air delivery (m³/min) slightly decreases. Selecting the right combination of flow and pressure is critical for optimal tool and machinery operation.
How does the lubricating oil requirement scale across models?
The required lubricating oil volume scales with unit size. Smaller units like the 10A require 4 liters, medium units range between 14 to 30 liters, and the heavy-duty industrial models (up to 350A) require up to 125 liters for optimal heat dissipation and lubrication.
What are the outlet connection sizes for different models?
The discharge outlet diameter increases with the air delivery capacity: smaller models use thread connections starting from G¼ up to G2½, while the high-capacity models (300A and 350A) use DN100 flange connections to handle large volumes of compressed air flow efficiently.
