OEM Industrial 15kw/22kw/37kw/55kw/75kw Energy Saving Pm Motor VSD/VFD Rotary Screw Air Compressor Manufacturer, Exporters

1. Energy saving by a staggering 50% on average by permanent Magnet Motor VSD air compressor . 2.high volumetric efficiency,best-in-class screw element with longer male rotor, 3.Permanent magnetic electric motor 100% transmission 4.Intelligent touch screen control panel, checking air compressor status more conveniently, monitor total power consumption, setting start and stop time of air compressor 5.Unique design for inverter, perfect protection from short phase, phase short circuit, ground short circuit, over current, overvoltage, under voltage, overload, overheating, motor thermal protections etc.

Send Inquiry

Product Description

Features

High reliability

High reliability, few parts and no wearing parts, so it runs reliably and has a long service life. Generally, the design life of the main screw is 15-20 years.

No base operation

The power balance is good, there is no unbalanced inertial force the machine can work smoothly at high speed, and realize the operation without foundation.

Easy to operate

It is easy to operate and maintain, with a high degree of automation, and operators do not need to undergo long-term professional training to achieve unattended operation.

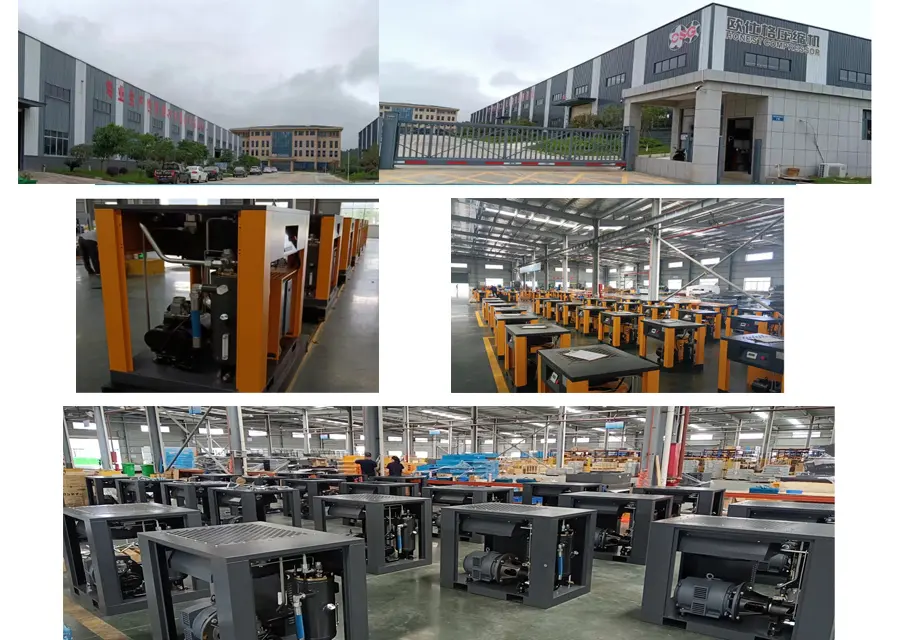

Our factory

Certifications

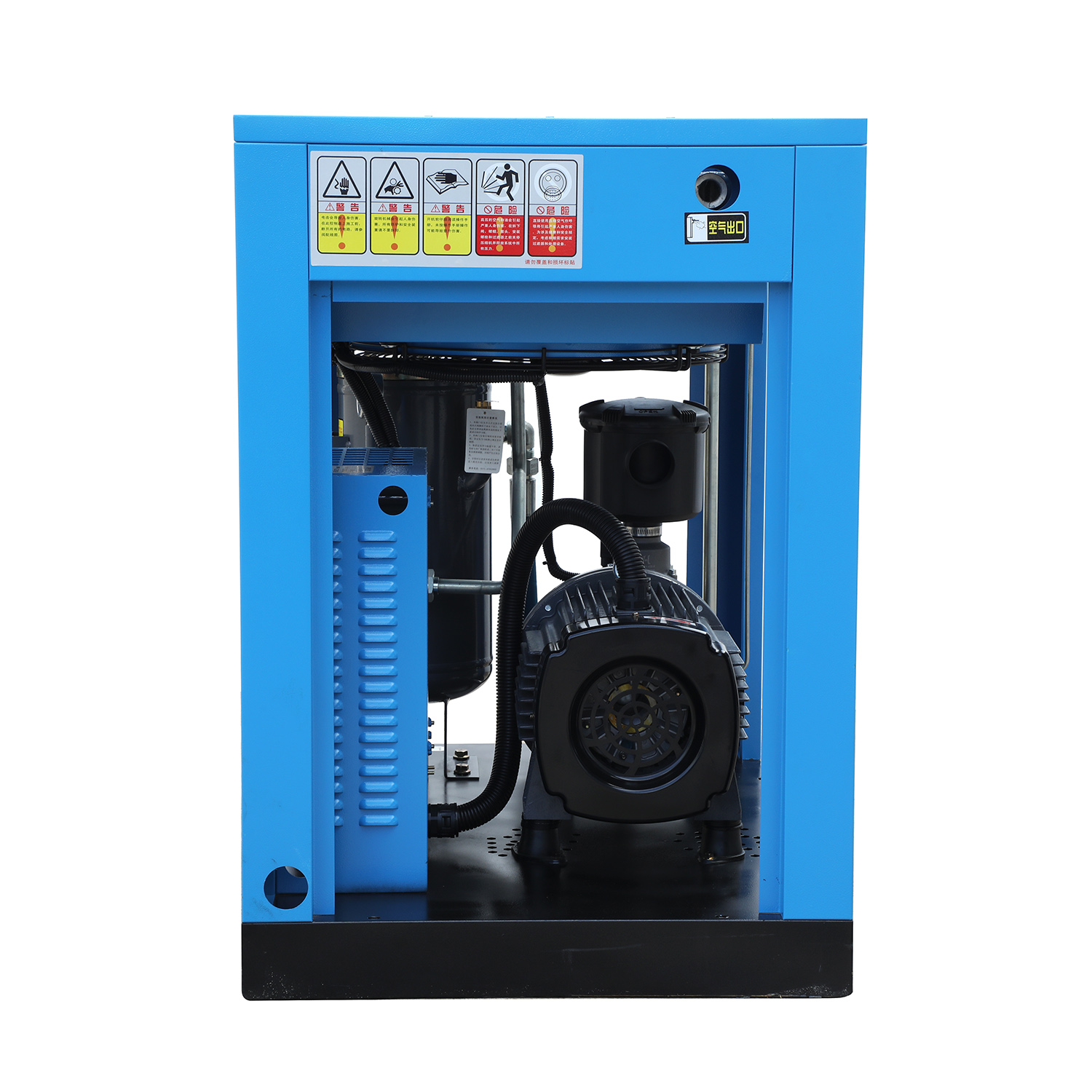

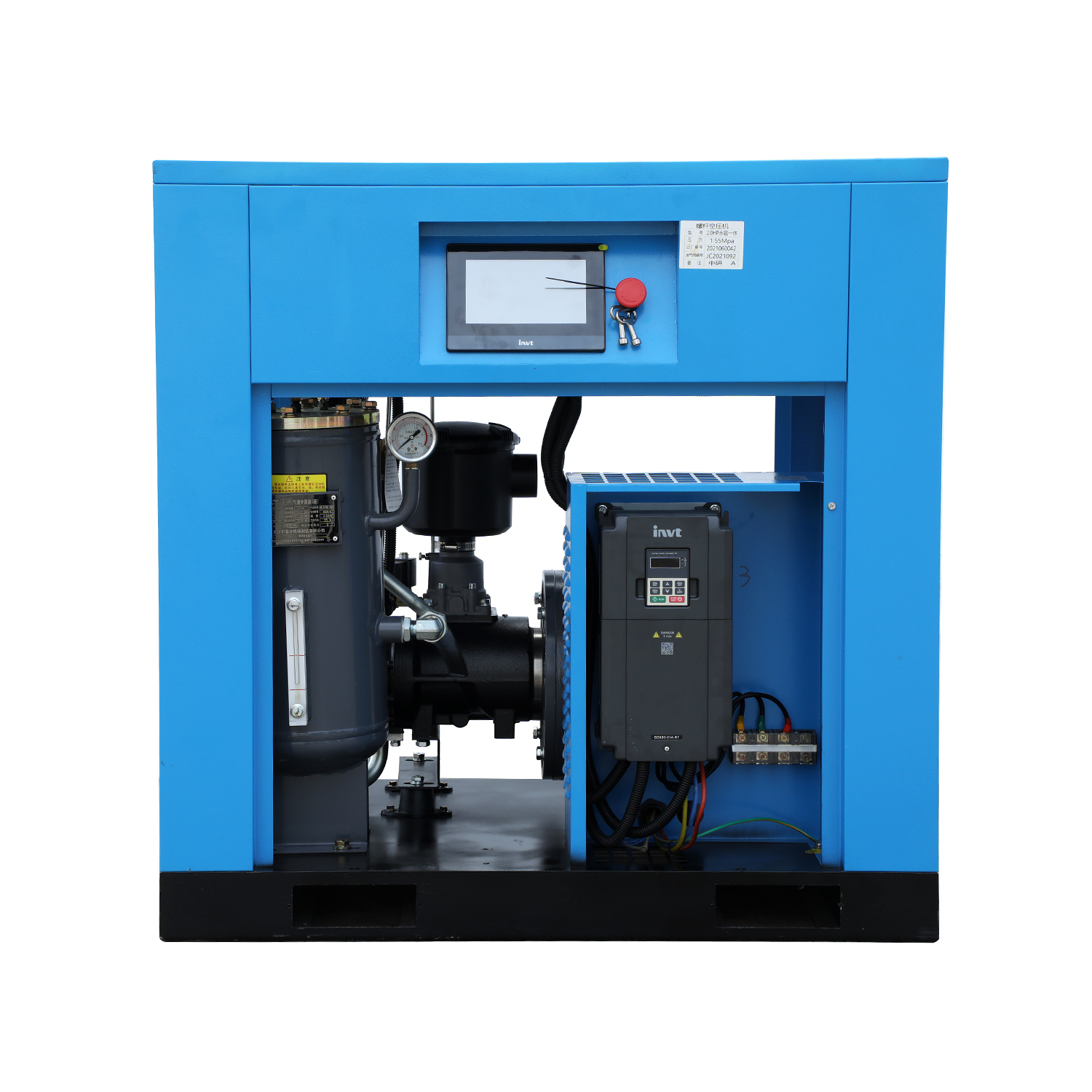

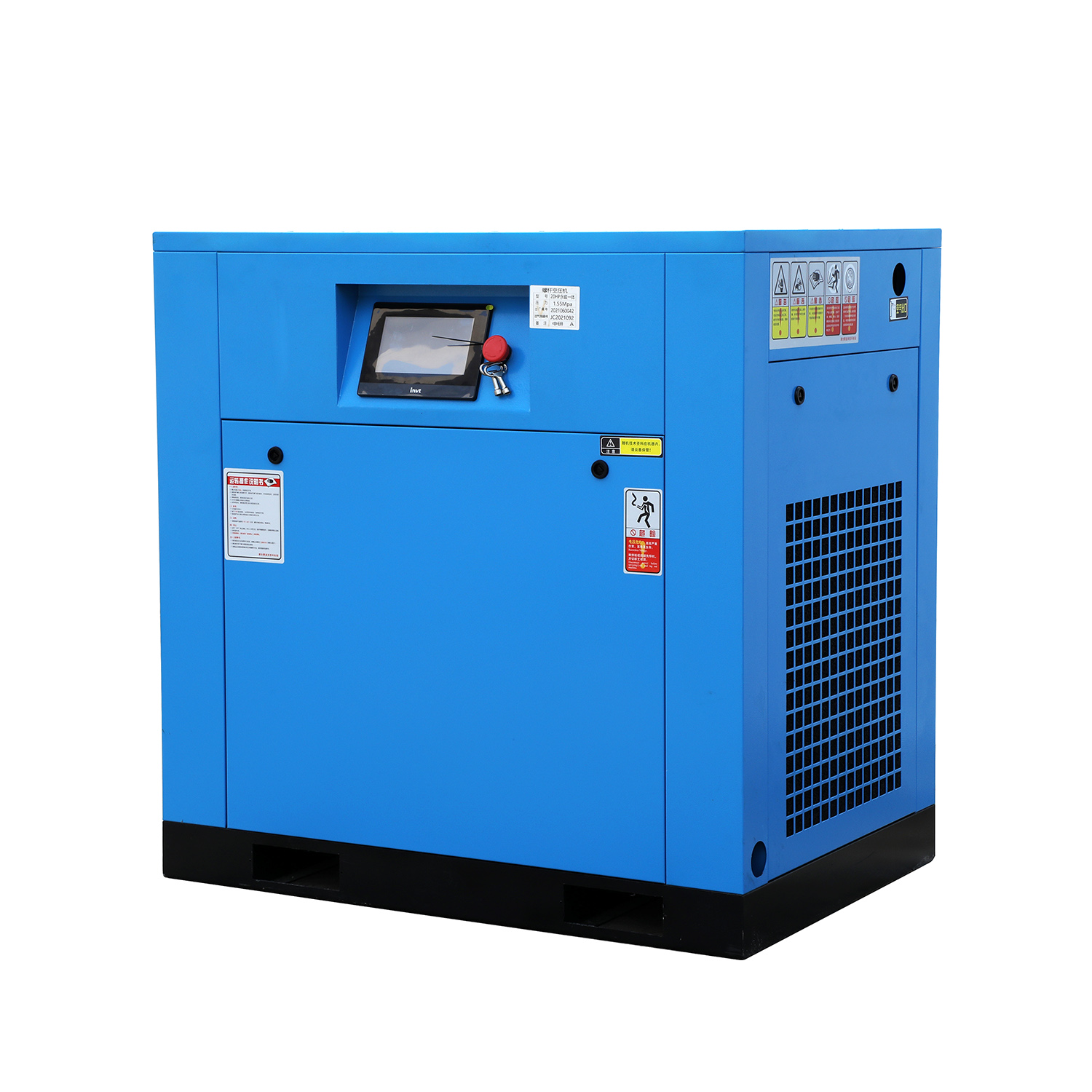

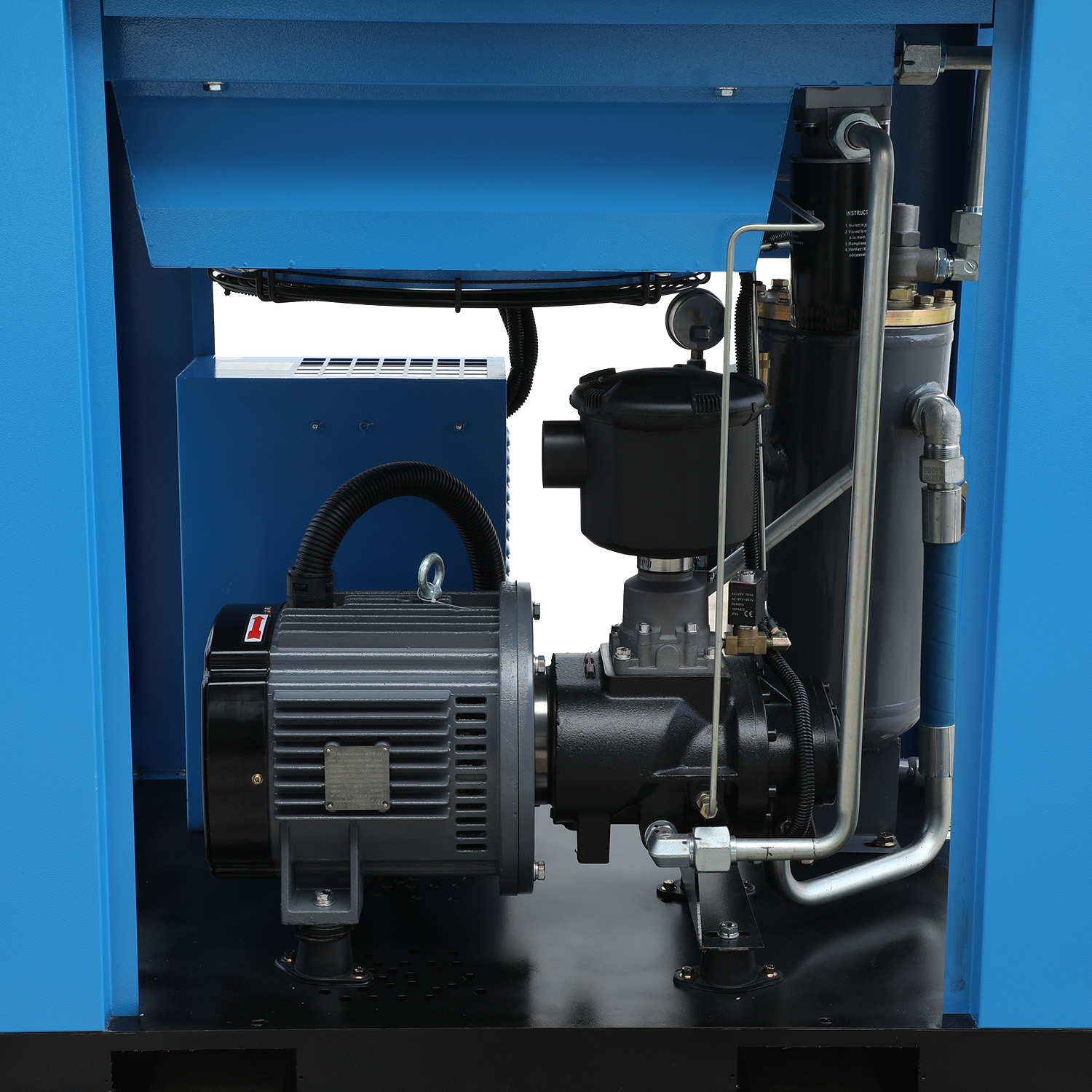

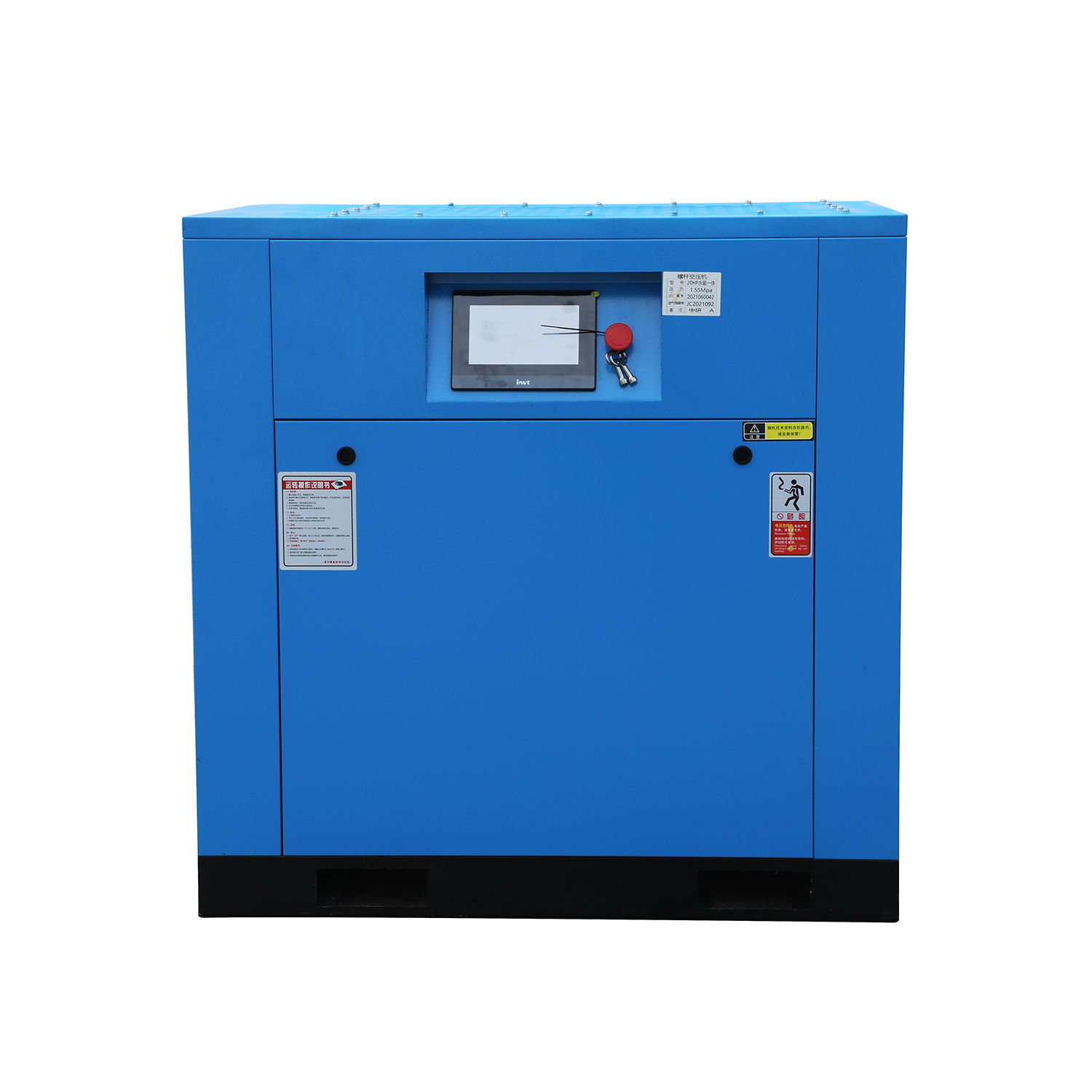

Product Pictures

Product Specification

XZV- series technical parameters:

Model

XZV-8A

XZV-11A

XZV-15A

XZV-18A

XZV-22A

XZV-30A

XZV-37A

XZV-45A/

XZV-55A

XZV-75A

XZV-90A

XZV-110A

XZV-132A

XZV-160A

Free air delivery/Discharge air pressure (M3/min/ Mpa)

1.1/0.7

1.8/0.7

2.5/0.7

3.0/0.7

3.7/0.7

5.0/0.7

6.5/0.7

7.4/0.7

10.0/0.7

13.4/0.7

16.2/0.7

21.0/0.7

24.5/0.7

28.7/0.7

1.0/0.8

1.7/0.8

2.3/0.8

2.9/0.8

3.5/0.8

4.8/0.8

6.2/0.8

7.0/0.8

9.6/0.8

12.6/0.8

15.0/0.8

19.8.0/0.8

23.2/0.8

27.6/0.8

0.9/1.0

1.5/1.0

2.0/1.0

2.7/1.0

3.1/1.0

4.3/1.0

5.6/1.0

6.2/1.0

8.5/1.0

11.2/1.0

13.8/1.0

17.4/1.0

20.5/1.0

24.6/1.0

0.7/1.3

1.2/1.3

1.7/1.3

2.2/1.3

2.6/1.3

3.6/1.3

4.5/1.3

5.5/1.3

7.2/1.3

9.8/1.3

11.6/1.3

14.3/1.3

17.4/1.3

21.5/1.3

Air supply temperature

≤ambient temperature +8~15°C

Motor

Power (kw/hp)

7.5/10

11/15

15/20

18.5/25

22/30

30/40

37/50

45/60

55/75

75/100

90/120

110/150

132/175

160/215

Start method

VSD Starter

Voltage (v/hz)

380V 3PH 50HZ (380V-3PH-60HZ/ 460V- 3PH- 60HZ/ 220V- 3PH-60HZ/ 400V-3PH-50HZ/6000V-3PH-50HZ/other voltages customized )

Drive method

Coupling transmission

Oil content (PPM)

≤3

Connector inch

3/4"

1 1/4"

1 1/2"

2 1/4"

2 1/2"

Noise(Db)±2

Dimension

length mm

900

1100

1060

1500

1800

1900

2500

width mm

700

750

820

1000

1230

1470

height mm

930

1000

1220

1290

1570

1840

Weight (kg)

140

200

210

235

296

336

443

466

834

917

1000

1200

1350

1400

Application

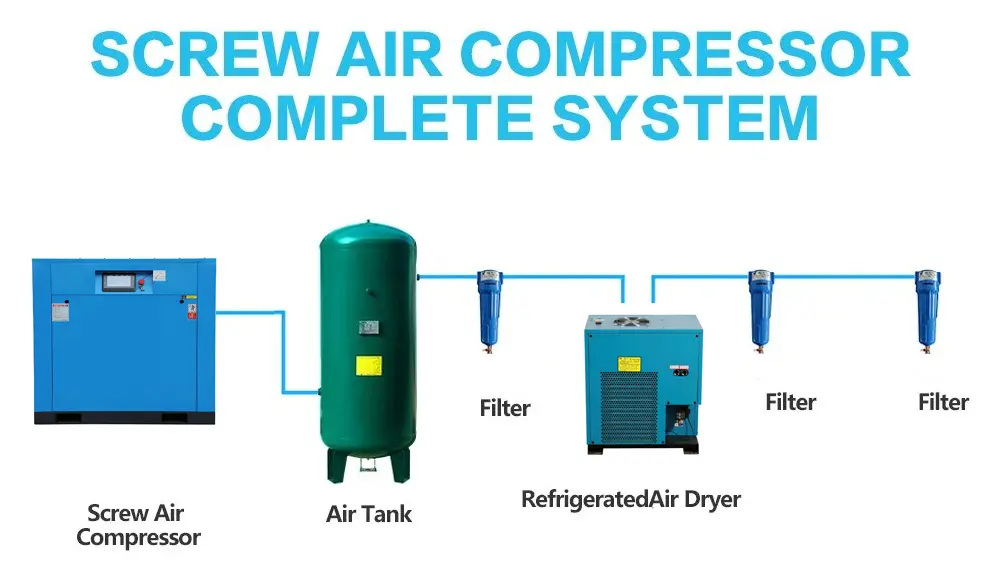

Air compressor installation processing

Frequently Asked Questions

Q1: Are you a factory or trade company?

A1: We are a factory and now we have 2 factories.

Q2: What are the warranty terms of your machine?

A2: We offer a 13-month warranty from the delivery date.

Q3: Will you provide spare parts for the Air Compressors?

A3: Yes, of course, we will provide the necessary spare parts.

Q4: How long will it take to arrange production?

A4: For 380V 50HZ, we can deliver the goods within 10 days. For other voltages or custom colors, delivery will be within 30 days.

Q5: Can you accept OEM orders?

A5: Yes, with our professional design team, OEM orders are highly welcome.
